SKU: HK2538ZWD-NTN

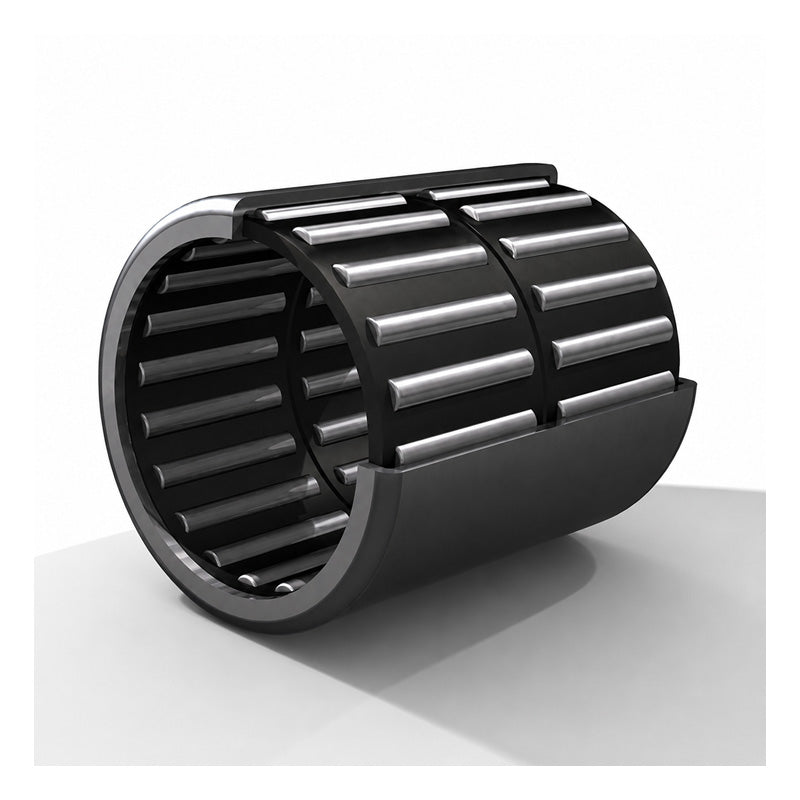

NTN HK2538ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 25x32x38mm
NTN HK2538ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 25x32x38mm
Regular price
€8,76
ex VAT
Regular price
Sale price
€8,76
ex VAT
In stock
Price Break
3+
€6,68
4+
€6,30
9+
€6,23
19+
€6,15
49+
€6,08
99+
€6,00
499+
€5,63
999+
€5,55
1999+
€5,48
2999+
€5,40
4999+
€5,25
Share this product
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 32mm
- Width:
- 38mm
Technical
Technical
| Fw - Inside diameter | 25mm |
|---|---|
| D - Outside diameter | 32mm |
| C - Width of bearing, drawn cup or outer ring | 38mm |
| Lubrication hole on outer ring? | Yes |
| k - Lubrication hole diameter | 2.5mm |
| Inner ring reference | IR20X25X38.5 |
| Cr - Dynamic load rating | 35 kN |
| C0r - Static load rating | 65.5 kN |
| N - Grease lubrication limit speed | 6500 tr/min |
| N - Oil lubrication limit speed | 9500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
