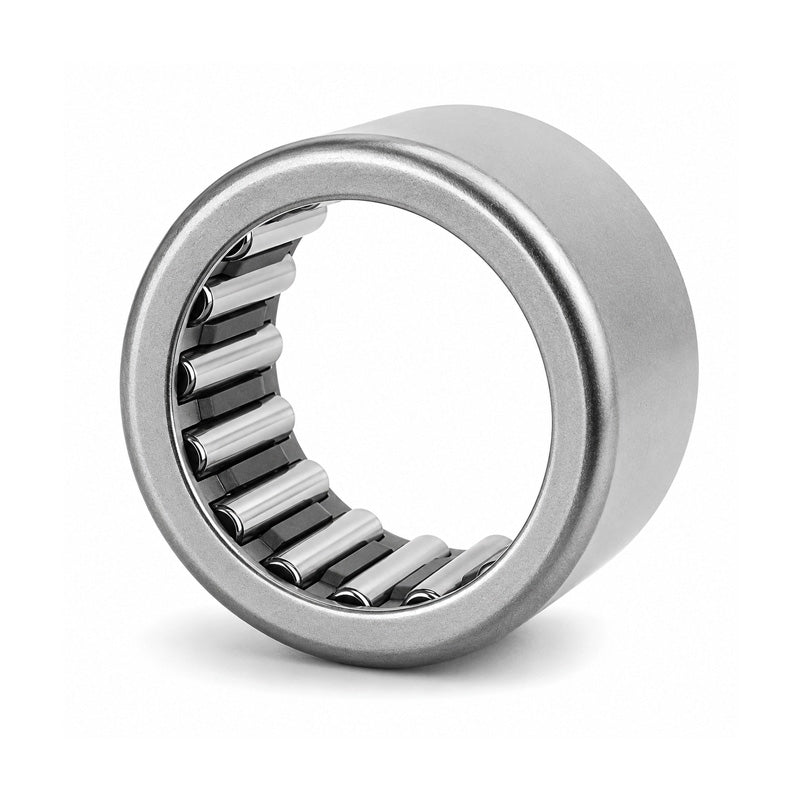

NTN HK2516LL/3AS Drawn Cup Needle Roller Bearing with Open End 25x32x16mm
NTN HK2516LL/3AS Drawn Cup Needle Roller Bearing with Open End 25x32x16mm
Regular price
€8,30
ex VAT
Regular price
Sale price
€8,30
ex VAT
In stock
Price Break
10+
€7,39
19+
€6,97
29+
€6,89
39+
€6,81
49+
€6,72
74+
€6,64
99+
€6,23
199+
€6,14
249+
€6,06
499+
€5,98
999+
€5,81
Couldn't load pickup availability
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 32mm
- Width:
- 16mm
Technical
Technical
| Fw - Inside diameter | 25mm |
|---|---|
| D - Outside diameter | 32mm |
| C2 - Width of drawn cup LL | 16mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR20X25X18D |
| Cr - Dynamic load rating | 11.8 kN |
| C0r - Static load rating | 16.3 kN |
| N - Grease lubrication limit speed | 6500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
