SKU: HK2020F-NTN

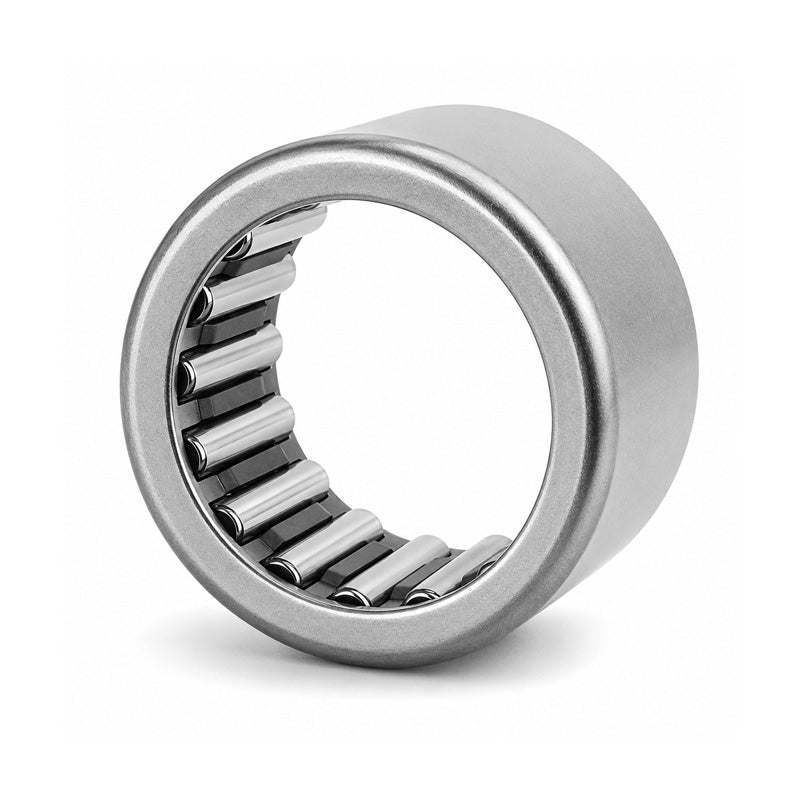

NTN HK2020F Drawn Cup Needle Roller Bearing with Open End 20x26x20mm
NTN HK2020F Drawn Cup Needle Roller Bearing with Open End 20x26x20mm
Regular price
€6,79
ex VAT
Regular price
Sale price
€6,79
ex VAT
In stock
Price Break
3+
€5,17
4+
€4,88
9+
€4,82
19+
€4,76
49+
€4,71
99+
€4,65
499+
€4,36
999+
€4,30
1999+
€4,24
2999+
€4,18
4999+
€4,07
Share this product
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 26mm
- Width:
- 20mm
Technical
Technical
| Fw - Inside diameter | 20mm |
|---|---|
| D - Outside diameter | 26mm |
| C - Width of bearing, drawn cup or outer ring | 20mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR17X20X20.5 |
| Cr - Dynamic load rating | 16 kN |
| C0r - Static load rating | 26.2 kN |
| N - Grease lubrication limit speed | 8000 tr/min |
| N - Oil lubrication limit speed | 12000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
