SKU: HK2010-EU

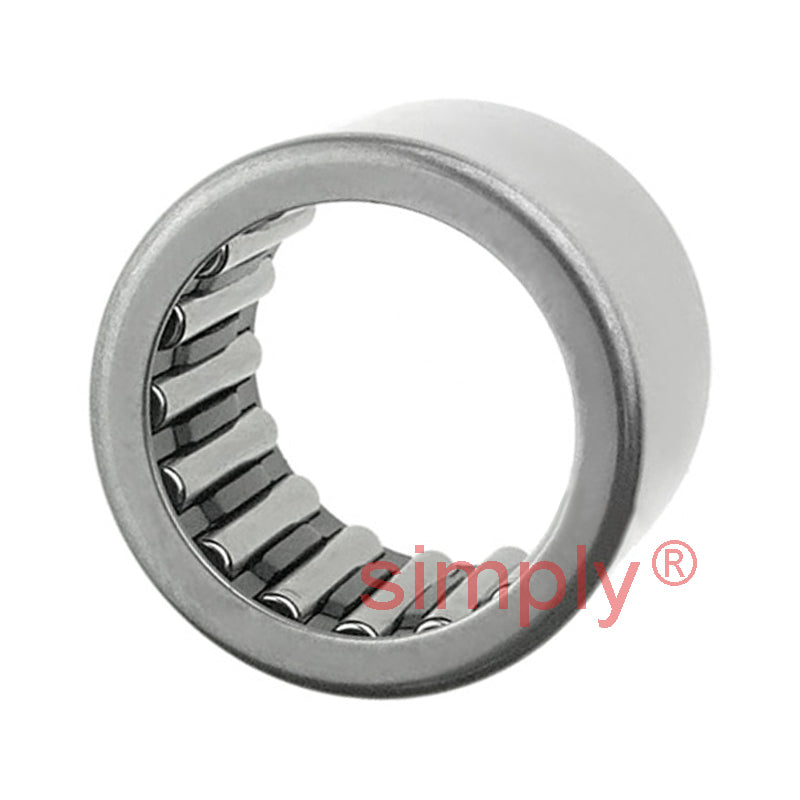

HK2010 Budget Drawn Cup Type Needle Roller Bearing Open End Type 20x26x10mm
HK2010 Budget Drawn Cup Type Needle Roller Bearing Open End Type 20x26x10mm
Regular price
€4,77
ex VAT
Regular price
Sale price
€4,77
ex VAT
Equivalent to: RHNA202610
In stock
Price Break
10+
€3,63
19+
€3,42
29+
€3,38
39+
€3,34
49+
€3,30
74+
€3,26
99+
€3,06
199+
€3,02
249+
€2,97
499+
€2,93
999+
€2,85
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Equivalent: RHNA202610
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 26mm
- Width:
- 10mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 26mm |
| C | 10mm |
| Dynamic load C | 6160 N |
| Static load Co | 8500 N |
| Fatigue load limit Pu | 930 N |
| Speed in grease | 9000 rpm |
| Speed in oil | 14000 rpm |
| r1r2 min | 0.8mm |
| Da max | 20.8mm |
| ra max | 0.8mm |
| Inner ring | IR15x20x12IS1 |
| Seal | G/SD20x26x4 |
| Weight | 12 g |
