SKU: HK1816F-NTN

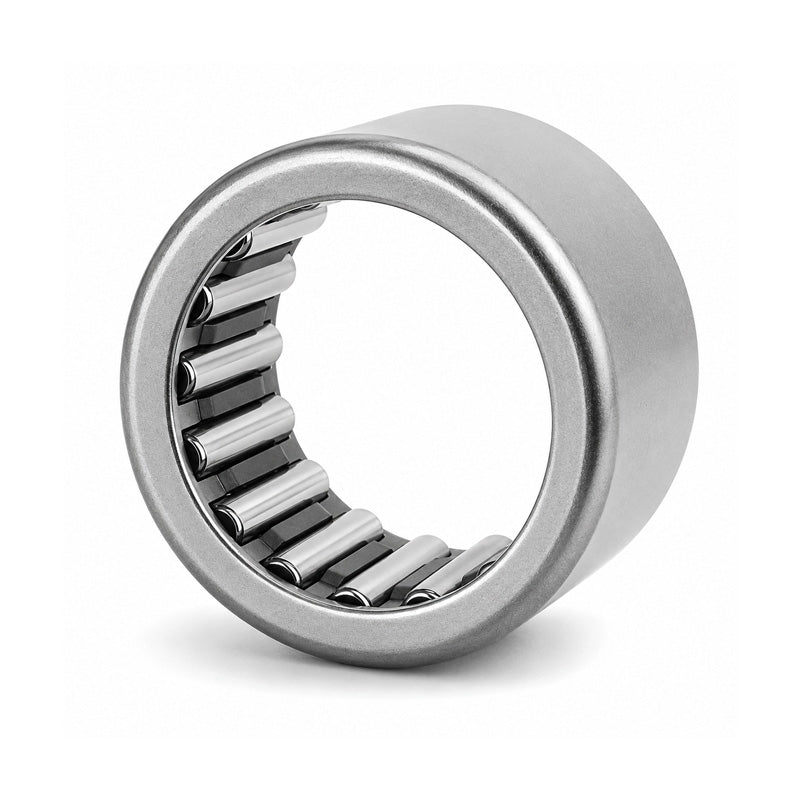

NTN HK1816F Drawn Cup Needle Roller Bearing with Open End 18x24x16mm

NTN HK1816F Drawn Cup Needle Roller Bearing with Open End 18x24x16mm
Regular price €6,23 ex VAT
Regular price Sale price €6,23 ex VAT
Sale Sold out

In stock

Price Break
3+ €4,74
4+ €4,48
9+ €4,42
19+ €4,37
49+ €4,32
99+ €4,26
499+ €4,00
999+ €3,94
1999+ €3,89
2999+ €3,84
4999+ €3,73
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Inside diameter 18mm
D - Outside diameter 24mm
C - Width of bearing, drawn cup or outer ring 16mm
Lubrication hole on outer ring? No
Inner ring reference IR15X18X16.5
Cr - Dynamic load rating 11.8 kN
C0r - Static load rating 17.3 kN
N - Grease lubrication limit speed 8500 tr/min
N - Oil lubrication limit speed 13000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
