SKU: HK1614-EU

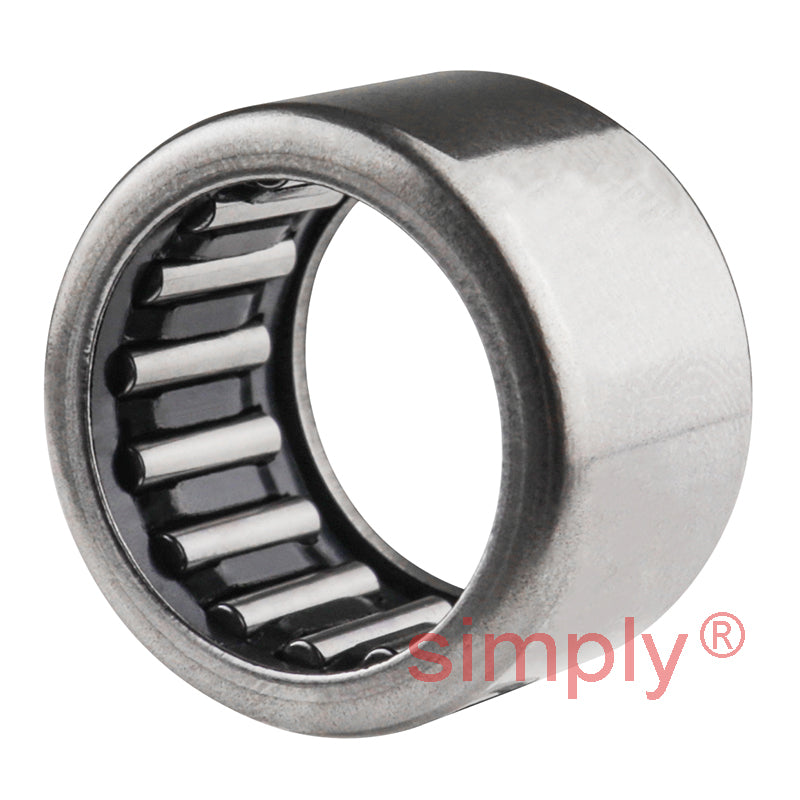

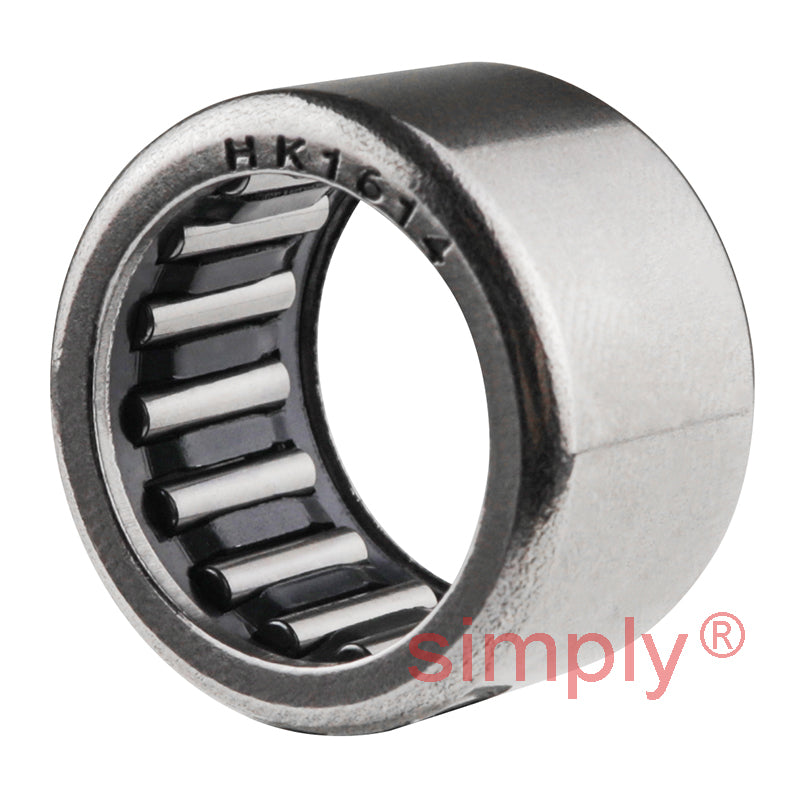

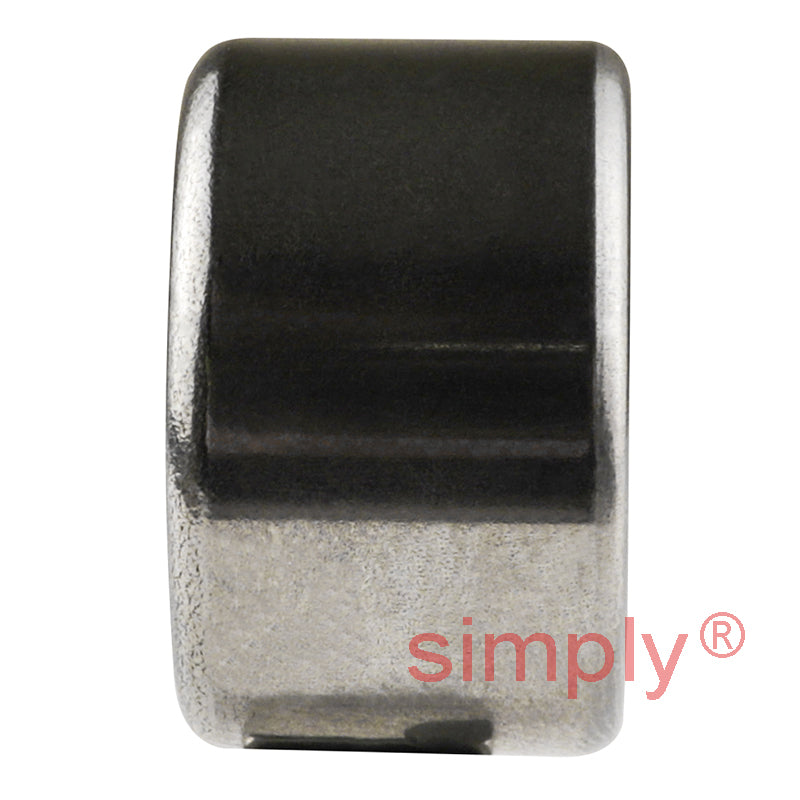

HK1614 Budget Drawn Cup Type Needle Roller Bearing Open End Type 16x22x14mm
HK1614 Budget Drawn Cup Type Needle Roller Bearing Open End Type 16x22x14mm
Regular price
€7,88
ex VAT
Regular price
Sale price
€7,88
ex VAT
Low stock
Price Break
10+
€6,00
19+
€5,66
29+
€5,59
39+
€5,52
49+
€5,46
74+
€5,39
99+
€5,05
199+
€4,99
249+
€4,92
499+
€4,85
999+
€4,72
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 22mm
- Width:
- 14mm
Technical
Technical
| Fw | 16mm |
|---|---|
| D | 22mm |
| C | 14mm |
| Dynamic load C | 7370 N |
| Static load Co | 9800 N |
| Fatigue load limit Pu | 1120 N |
| Speed in grease | 10000 rpm |
| Speed in oil | 0.013 rpm |
| r1r2 min | 0.8mm |
| Da max | 17mm |
| ra max | 0.8mm |
| Inner ring | IR12x16x16 |
| Weight | HK1614 g |
