SKU: HK1210FM-NTN

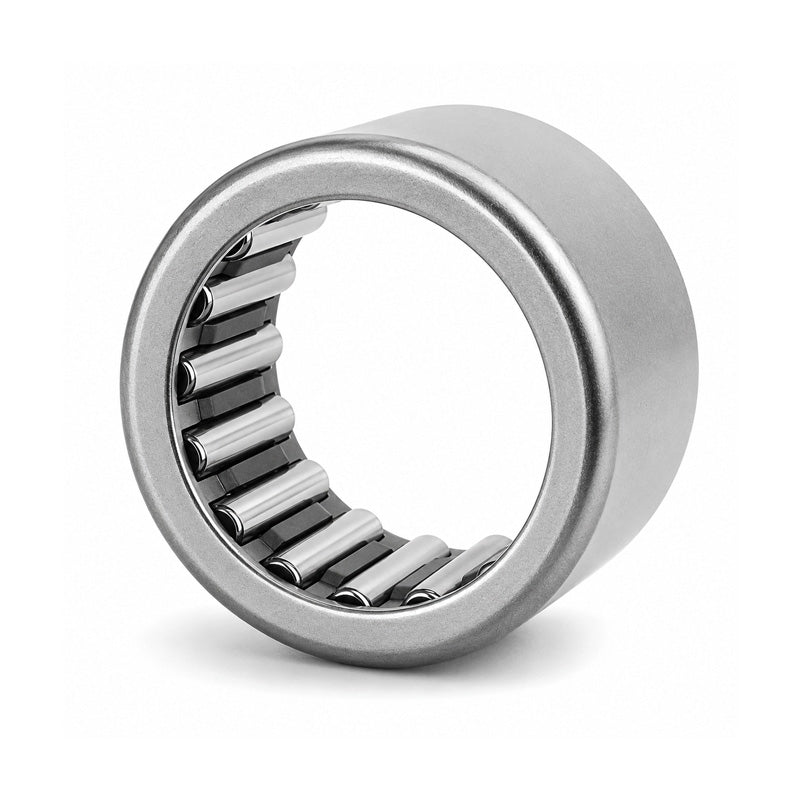

NTN HK1210FM Drawn Cup Needle Roller Bearing with Open End 12x16x10mm
NTN HK1210FM Drawn Cup Needle Roller Bearing with Open End 12x16x10mm
Regular price
€4,79
ex VAT
Regular price
Sale price
€4,79
ex VAT
In stock
Price Break
10+
€4,26
19+
€4,02
29+
€3,98
39+
€3,93
49+
€3,88
74+
€3,83
99+
€3,59
199+
€3,54
249+
€3,50
499+
€3,45
999+
€3,35
Couldn't load pickup availability
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 16mm
- Width:
- 10mm
Technical
Technical
| Fw - Inside diameter | 12mm |
|---|---|
| D - Outside diameter | 16mm |
| C - Width of bearing, drawn cup or outer ring | 10mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR8X12X10.5 |
| Cr - Dynamic load rating | 5.05 kN |
| C0r - Static load rating | 6.25 kN |
| N - Grease lubrication limit speed | 13000 tr/min |
| N - Oil lubrication limit speed | 20000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
