SKU: HK0709-EU

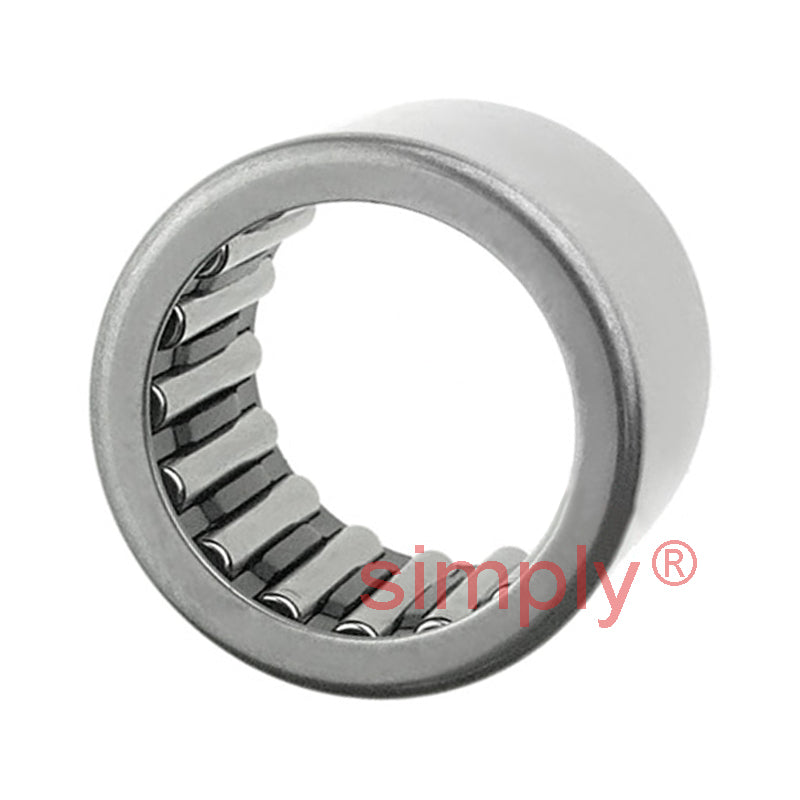

HK0709 Budget Drawn Cup Type Needle Roller Bearing Open End Type 7x11x9mm
HK0709 Budget Drawn Cup Type Needle Roller Bearing Open End Type 7x11x9mm
Regular price
€3,90
ex VAT
Regular price
Sale price
€3,90
ex VAT
Equivalent to: TLA79Z RHNA071109
In stock
Price Break
10+
€2,98
19+
€2,81
29+
€2,78
39+
€2,74
49+
€2,71
74+
€2,68
99+
€2,51
199+
€2,47
249+
€2,44
499+
€2,41
999+
€2,34
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Equivalent: TLA79Z RHNA071109
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 7mm
- Outside Diameter:
- 11mm
- Width:
- 9mm
Technical
Technical
| Fw | 7mm |
|---|---|
| D | 11mm |
| C | 9mm |
| Dynamic load C | 3030 N |
| Static load Co | 3050 N |
| Fatigue load limit Pu | 325 N |
| Speed in grease | 18000 rpm |
| Speed in oil | 28000 rpm |
| r1r2 min | 0.4mm |
| Da max | 7.3mm |
| ra max | 0.4mm |
| Seal | G7x11x2S |
| Weight | 2.6 g |
