SKU: HCFL215

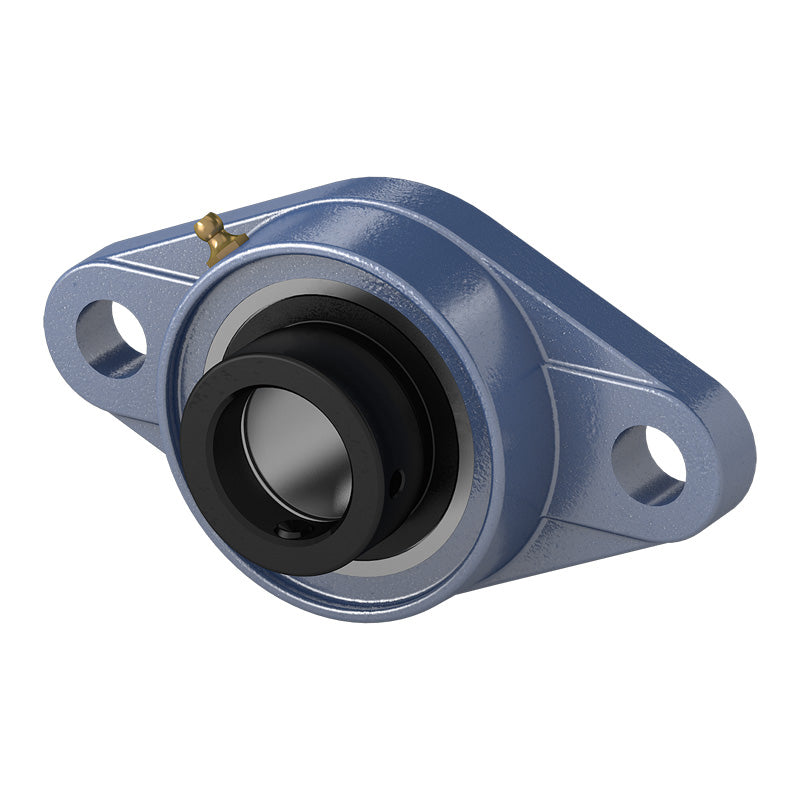

HCFL215 Metric Two Bolt Cast Iron Oval Housing with 75mm Eccentric Collar Insert
HCFL215 Metric Two Bolt Cast Iron Oval Housing with 75mm Eccentric Collar Insert
Regular price
€141,28
ex VAT
Regular price
Sale price
€141,28
ex VAT
In stock
Price Break
10+
€125,74
19+
€118,68
29+
€117,26
39+
€115,85
49+
€114,44
74+
€113,02
99+
€105,96
199+
€104,55
249+
€103,13
499+
€101,72
999+
€98,90
Couldn't load pickup availability
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Style:
- HCFL
- Bolt Hole Centres:
- 225mm
Technical
Technical
| d | 75mm |
|---|---|
| a | 275mm |
| e | 225mm |
| i | 34mm |
| g | 22mm |
| l | 56mm |
| s | 23mm |
| b | 165mm |
| z | 88.8mm |
| B1 | 92.1mm |
| n | 37.3mm |
| Bolt size | M20 |
| Bearing no | HC215 |
| Housing no | FL215 |
| Weight | 6.09 kg |
