SKU: HCFL206

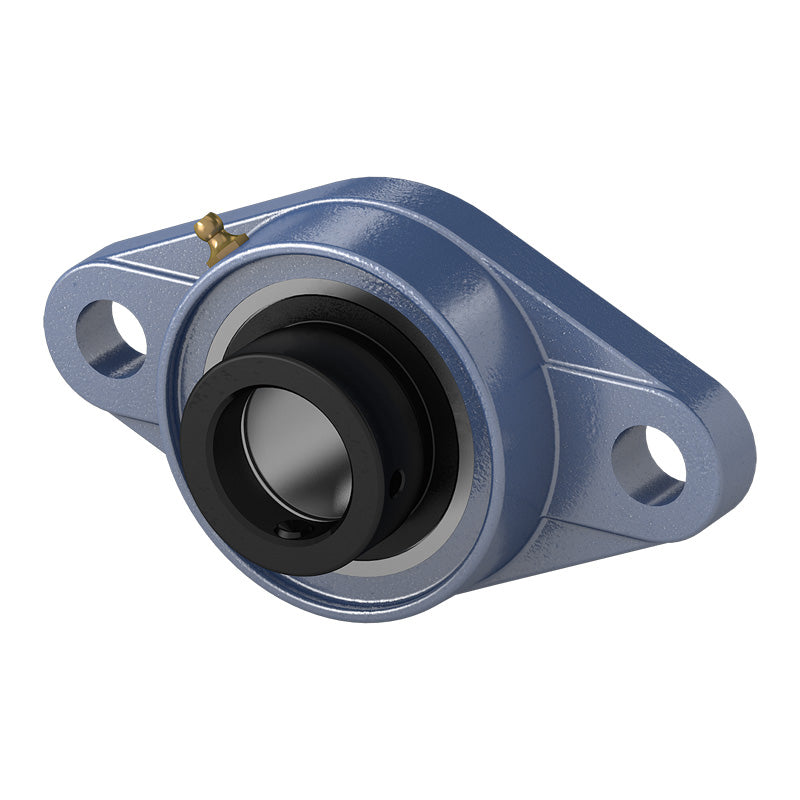

HCFL206 Metric Two Bolt Cast Iron Oval Housing with 30mm Eccentric Collar Insert
HCFL206 Metric Two Bolt Cast Iron Oval Housing with 30mm Eccentric Collar Insert
Regular price
€19,63
ex VAT
Regular price
Sale price
€19,63
ex VAT
In stock
Price Break
10+
€17,47
19+
€16,49
29+
€16,29
39+
€16,10
49+
€15,90
74+
€15,70
99+
€14,72
199+
€14,53
249+
€14,33
499+
€14,13
999+
€13,74
Couldn't load pickup availability
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- HCFL
- Bolt Hole Centres:
- 117mm
Technical
Technical
| d | 30mm |
|---|---|
| a | 148mm |
| e | 117mm |
| i | 18mm |
| g | 13mm |
| l | 31mm |
| s | 16mm |
| b | 80mm |
| z | 48.1mm |
| B1 | 48.4mm |
| n | 18.3mm |
| Bolt size | M14 |
| Bearing no | HC206 |
| Housing no | FL206 |
| Weight | 0.9 kg |
