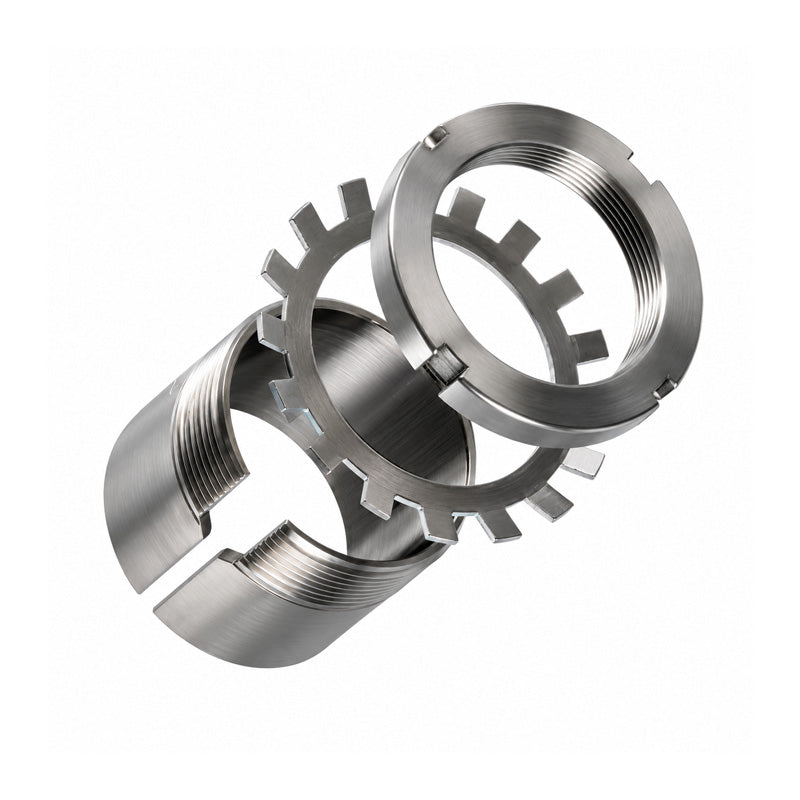

• SKF HA315 Imperial Adaptor Sleeve for 2-7/16 inch Shaft
1 1

SKU: HA315-SKF

SKF HA315 Imperial Adaptor Sleeve for 2-7/16 inch Shaft

SKF HA315 Imperial Adaptor Sleeve for 2-7/16 inch Shaft
€69,57 ex VAT
€69,57 ex VAT
Sale Sold out

In stock

Price Break
2+ €52,98
5+ €50,00
10+ €49,41
20+ €48,81
49+ €48,22
74+ €47,62
99+ €44,64
199+ €44,05
249+ €43,45
499+ €42,86
999+ €41,67
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves for imperial shafts: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
61.91mm = 2.437 (2-7/16) inch
Outside Diameter:
98mm
Width:
55mm
Technical
--- Dimensions
d1 61.91mm (2-7/16)inch
d 75mm
d3 98mm
B1 55mm
B2 14.5mm
G Thread 75x2mm
Weight 0.91 kg
--- Assembly Parts
Sleeve HA315
Nut KM15
Washer MB15
Hydraulic nut HMV15E
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2215K+taper>2215K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1315K+taper>1315K</a>
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22215K+taper>22215K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21315K+taper>21315K</a>
