SKU: H315E-SKF

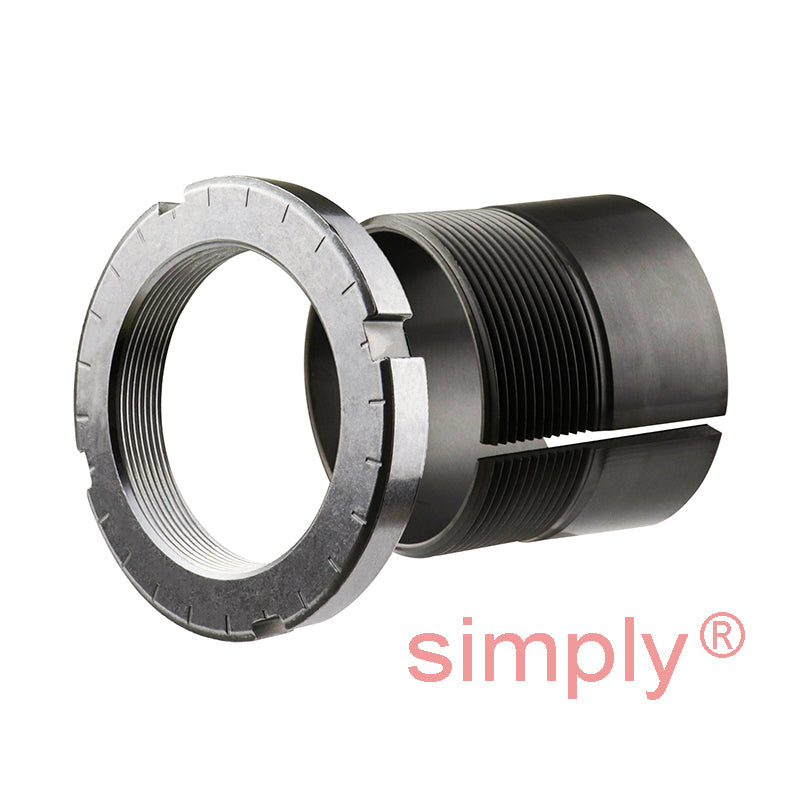

SKF H315E Adaptor Sleeve with Lock Nut and Locking Device for 65mm Shaft
SKF H315E Adaptor Sleeve with Lock Nut and Locking Device for 65mm Shaft
Regular price
€75,23
ex VAT
Regular price
Sale price
€75,23
ex VAT
In stock
Price Break
2+
€57,30
5+
€54,08
10+
€53,44
20+
€52,79
49+
€52,15
74+
€51,51
99+
€48,29
199+
€47,64
249+
€47,00
499+
€46,36
999+
€45,07
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 98mm
- Width:
- 55mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 65mm |
| d | 75mm |
| d3 | 98mm |
| B1 | 55mm |
| B2 | 16mm |
| G | Thread 75x2mm |
| Weight | 0.8 kg |
| --- | Assembly Parts |
| Sleeve | H315E |
| Nut | KMFE15 |
| Hydraulic nut | HMV15E |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2215K+taper>C2215K</a> |
