SKU: H3134-SKF

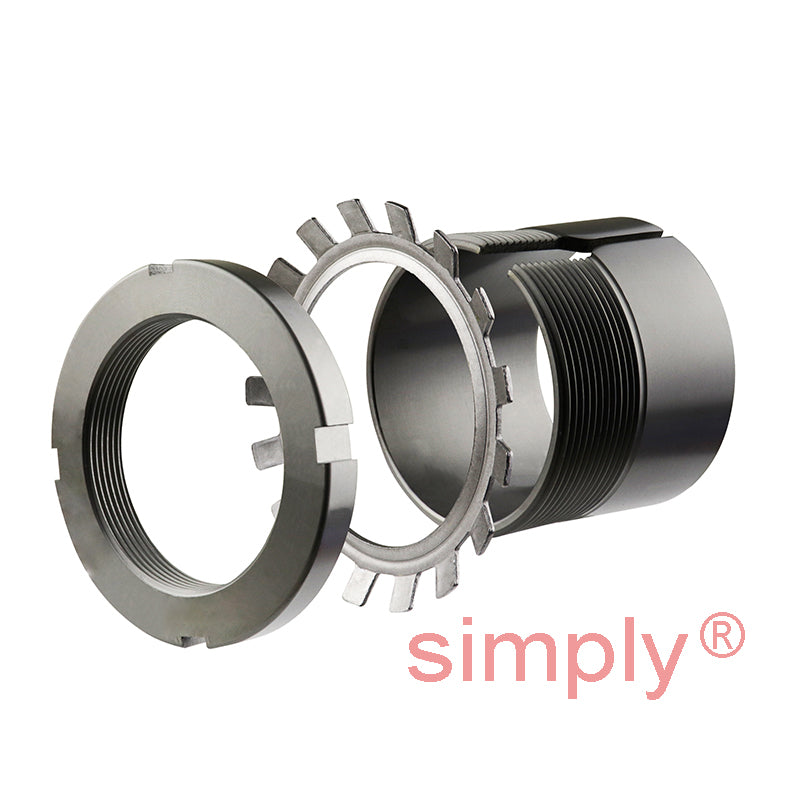

SKF H3134 Adaptor Sleeve with Lock Nut and Locking Device for 150mm Shaft
SKF H3134 Adaptor Sleeve with Lock Nut and Locking Device for 150mm Shaft
Regular price
€475,76
ex VAT
Regular price
Sale price
€475,76
ex VAT
In stock
Price Break
10+
€423,43
19+
€399,64
29+
€394,88
39+
€390,12
49+
€385,37
74+
€380,61
99+
€356,82
199+
€352,06
249+
€347,30
499+
€342,55
999+
€333,03
Couldn't load pickup availability
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 220mm
- Width:
- 122mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 150mm |
| d | 170mm |
| d3 | 220mm |
| B1 | 122mm |
| B2 | 28.5mm |
| G | Thread 170x3mm |
| Weight | 8.1 kg |
| --- | Assembly Parts |
| Sleeve | H3134 |
| Nut | KM34 |
| Washer | MB34 |
| Hydraulic nut | HMV34E |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23134K+taper>23134K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22234K+taper>22234K</a> |
