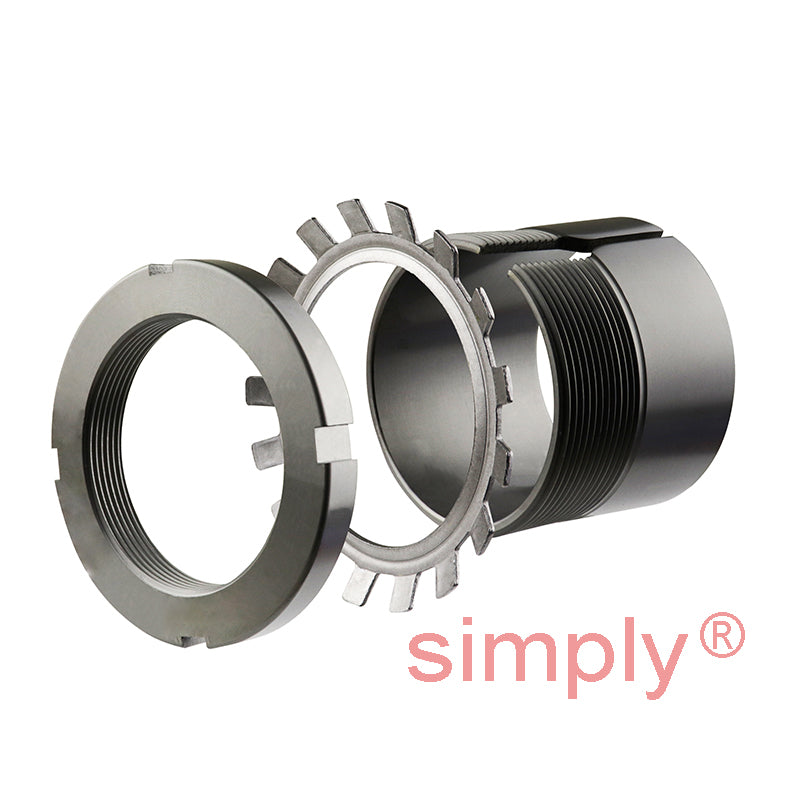

• SKF H3128 Adaptor Sleeve with Lock Nut and Locking Device for 125mm Shaft
1 1

SKU: H3128-SKF

SKF H3128 Adaptor Sleeve with Lock Nut and Locking Device for 125mm Shaft

SKF H3128 Adaptor Sleeve with Lock Nut and Locking Device for 125mm Shaft
€272,84 ex VAT
€272,84 ex VAT
Sale Sold out

In stock

Price Break
2+ €207,80
5+ €196,12
10+ €193,79
20+ €191,45
49+ €189,12
74+ €186,78
99+ €175,11
199+ €172,78
249+ €170,44
499+ €168,11
999+ €163,44
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
125mm
Outside Diameter:
180mm
Width:
97mm
Technical
--- Dimensions
d1 125mm
d 140mm
d3 180mm
B1 97mm
B2 24mm
G Thread 140x2mm
Weight 4.1 kg
--- Assembly Parts
Sleeve H3128
Nut KM28
Washer MB28
Hydraulic nut HMV28E
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23128K+taper>23128K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22228K+taper>22228K</a>
