SKU: H308C-SKF

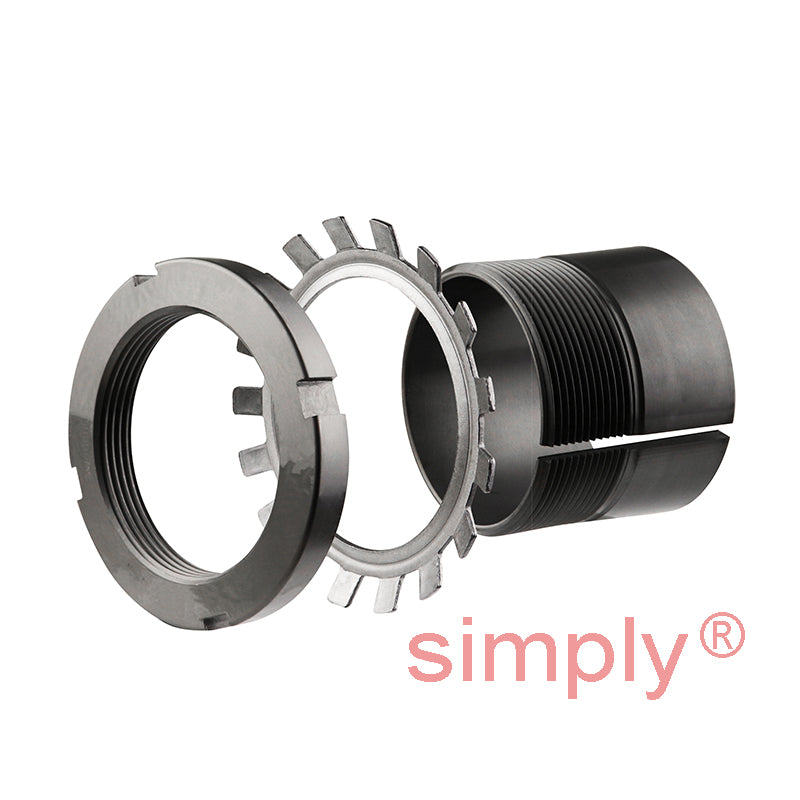

SKF H308C Adaptor Sleeve with Lock Nut and Locking Device for 35mm Shaft
SKF H308C Adaptor Sleeve with Lock Nut and Locking Device for 35mm Shaft
Regular price
€35,82
ex VAT
Regular price
Sale price
€35,82
ex VAT
In stock
Price Break
2+
€27,28
5+
€25,75
10+
€25,44
20+
€25,13
49+
€24,83
74+
€24,52
99+
€22,99
199+
€22,68
249+
€22,38
499+
€22,07
999+
€21,46
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 58mm
- Width:
- 36mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 35mm |
| d | 40mm |
| d3 | 58mm |
| B1 | 36mm |
| B2 | 11mm |
| G | Thread 40x1.5mm |
| Weight | 0.17 kg |
| --- | Assembly Parts |
| Sleeve | H308C |
| Nut | KM8 |
| Washer | MB8C |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2208K-2RS+taper>2208K-2RS</a> |
