SKU: H307-SKF

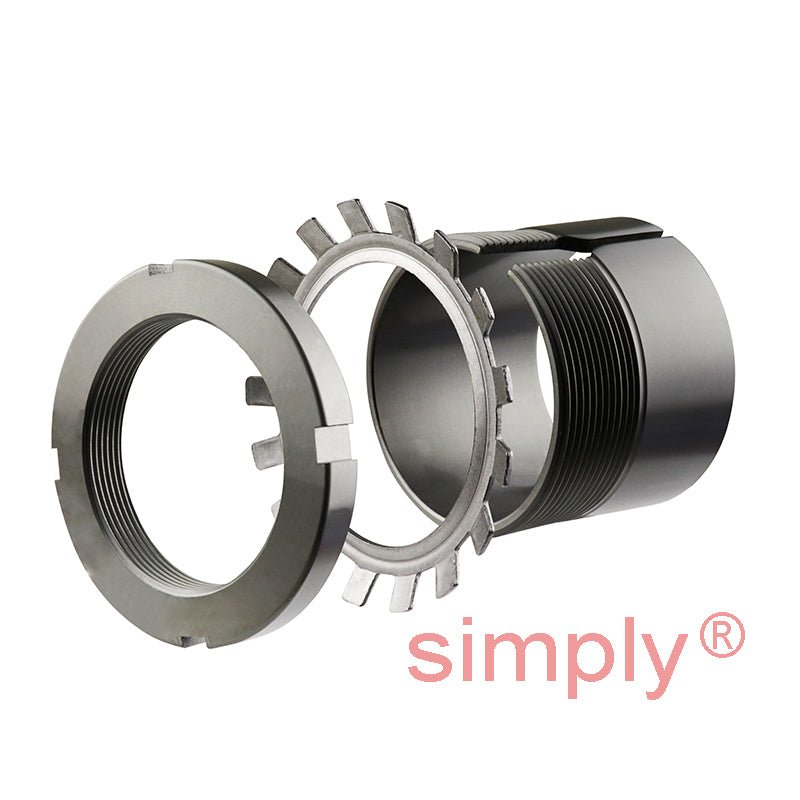

SKF H307 Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
SKF H307 Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
Regular price
€21,40
ex VAT
Regular price
Sale price
€21,40
ex VAT
In stock
Price Break
2+
€16,30
5+
€15,38
10+
€15,20
20+
€15,02
49+
€14,83
74+
€14,65
99+
€13,74
199+
€13,55
249+
€13,37
499+
€13,19
999+
€12,82
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 52mm
- Width:
- 35mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 30mm |
| d | 35mm |
| d3 | 52mm |
| B1 | 35mm |
| B2 | 9mm |
| G | Thread 35x1.5mm |
| Weight | 0.14 kg |
| --- | Assembly Parts |
| Sleeve | H307 |
| Nut | KM7 |
| Washer | MB7 |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2207K+taper+self+open>2207K</a> |
| --- | Matching Spherical Roller Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1307K+taper+self+open>1307K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22207K+taper>22207K</a> |
