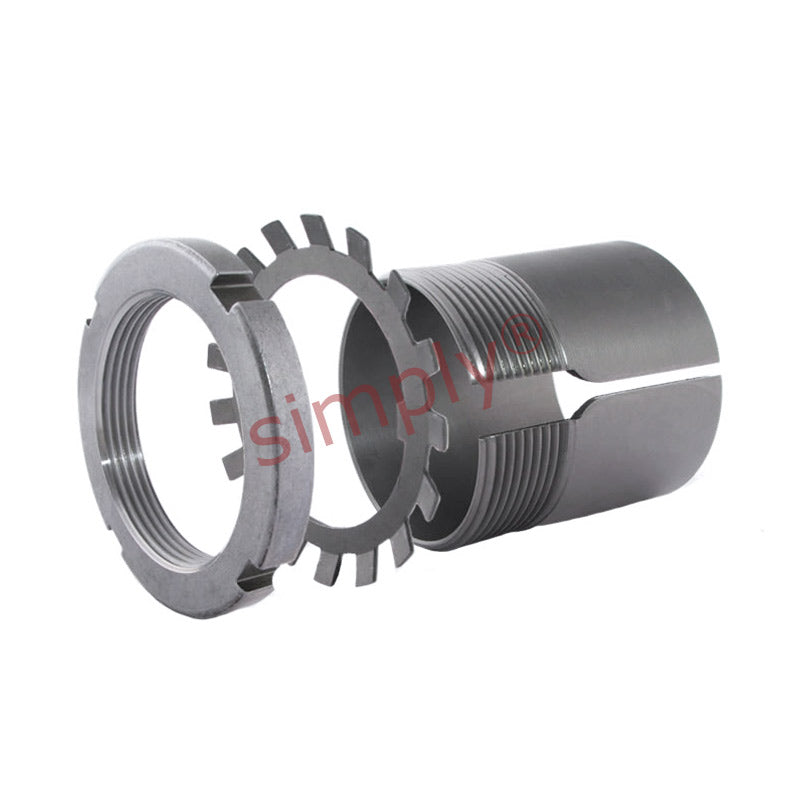

FAG H307 Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
FAG H307 Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
Regular price
€19,07
ex VAT
Regular price
Sale price
€19,07
ex VAT
In stock
Price Break
10+
€14,52
19+
€13,71
29+
€13,55
39+
€13,38
49+
€13,22
74+
€13,06
99+
€12,24
199+
€12,08
249+
€11,91
499+
€11,75
999+
€11,42
Share this product
Description
Description
|
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 52mm
- Width:
- 35mm
Technical
Technical
| d1 | 30mm |
|---|---|
| d | 35mm |
| d3 | 52mm |
| B1 | 35mm |
| B2 | 9mm |
| G | Thread 35x1.5mm |
| Weight | 0.14 kg |
| Sleeve | H307 |
| Nut | KM7 |
| Washer | MB7 |
