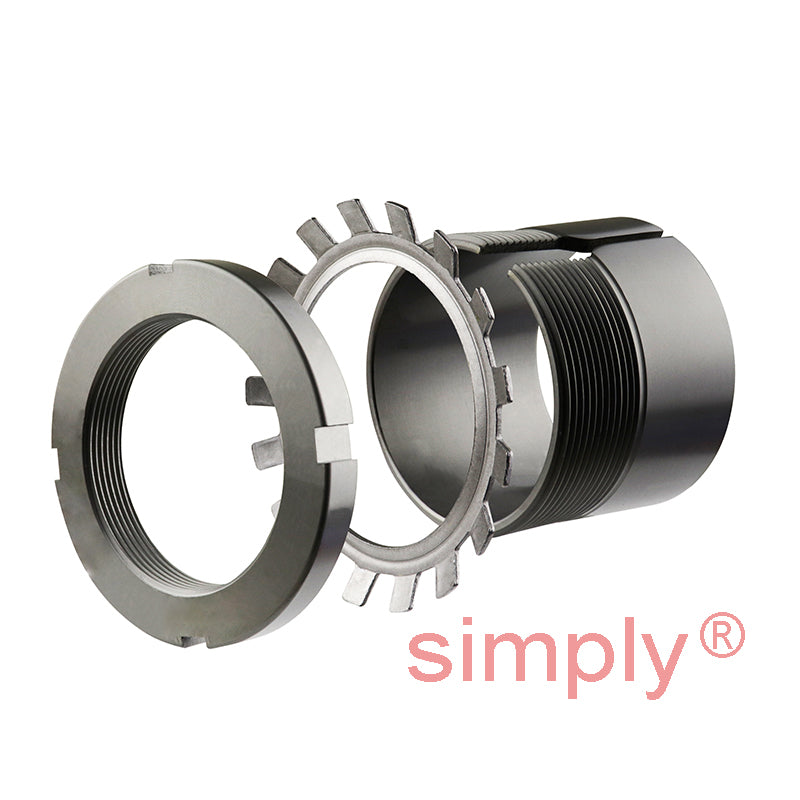

• SKF H2318 Adaptor Sleeve with Lock Nut and Locking Device for 80mm Shaft
1 1

SKU: H2318-SKF

SKF H2318 Adaptor Sleeve with Lock Nut and Locking Device for 80mm Shaft

SKF H2318 Adaptor Sleeve with Lock Nut and Locking Device for 80mm Shaft
€111,21 ex VAT
€111,21 ex VAT
Sale Sold out

In stock

Price Break
2+ €84,70
5+ €79,94
10+ €78,99
20+ €78,04
49+ €77,09
74+ €76,14
99+ €71,38
199+ €70,43
249+ €69,47
499+ €68,52
999+ €66,62
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
80mm
Outside Diameter:
120mm
Width:
86mm
Technical
--- Dimensions
d1 80mm
d 90mm
d3 120mm
B1 86mm
B2 18mm
G Thread 90x2mm
Weight 1.6 kg
--- Assembly Parts
Sleeve H2318
Nut KM18
Washer MB18
Hydraulic nut HMV18E
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2318K+taper+self+open>2318K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23218K+taper>23218K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22318K+taper>22318K</a>
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2318K+taper>C2318K</a>
