SKU: H2311-SKF

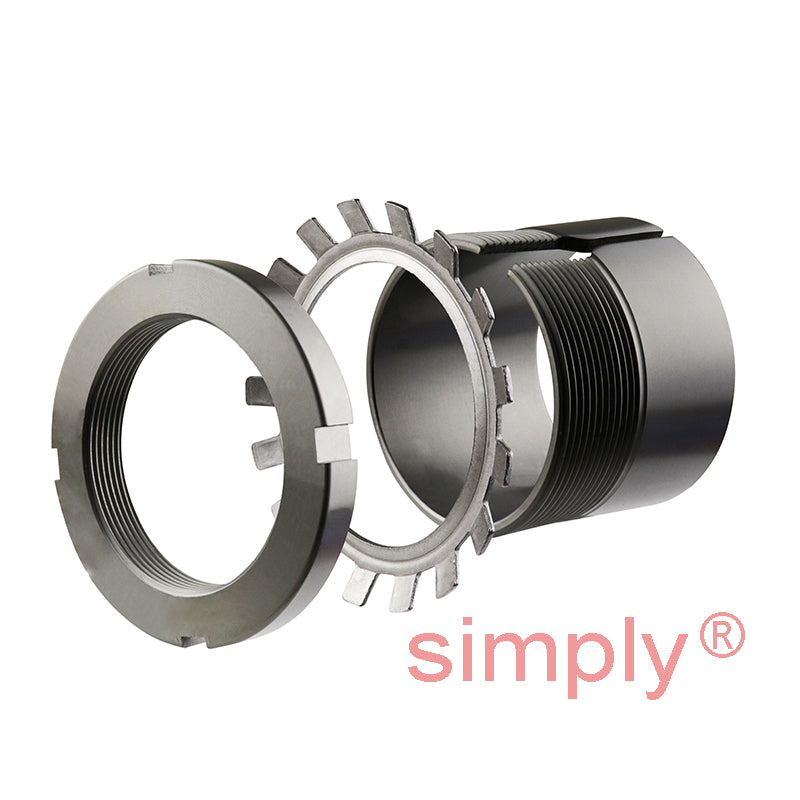

SKF H2311 Adaptor Sleeve with Lock Nut and Locking Device for 50mm Shaft

Name: SKF H2311 Adaptor Sleeve with Lock Nut and Locking Device for 50mm Shaft
Brand: SKF
SKU: H2311-SKF
Price: 42.35 EUR
Availability: InStock

€42,35 ex VAT

Sale Sold out

In stock

Price Break

2+ €32,25

5+ €30,44

10+ €30,08

20+ €29,71

49+ €29,35

74+ €28,99

99+ €27,18

199+ €26,81

249+ €26,45

499+ €26,09

999+ €25,37

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 50mm
Outside Diameter:: 75mm
Width:: 59mm

Technical

---	Dimensions
d1	50mm
d	55mm
d3	75mm
B1	59mm
B2	12.5mm
G	Thread 55x2mm
Weight	0.39 kg
---	Assembly Parts
Sleeve	H2311
Nut	KM11
Washer	MB11
Hydraulic nut	HMV11E
---	Matching Self Aligning Bearings
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2311K+taper+self+open>2311K</a>
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22311K+taper>22311K</a>

Reviews

View full details
