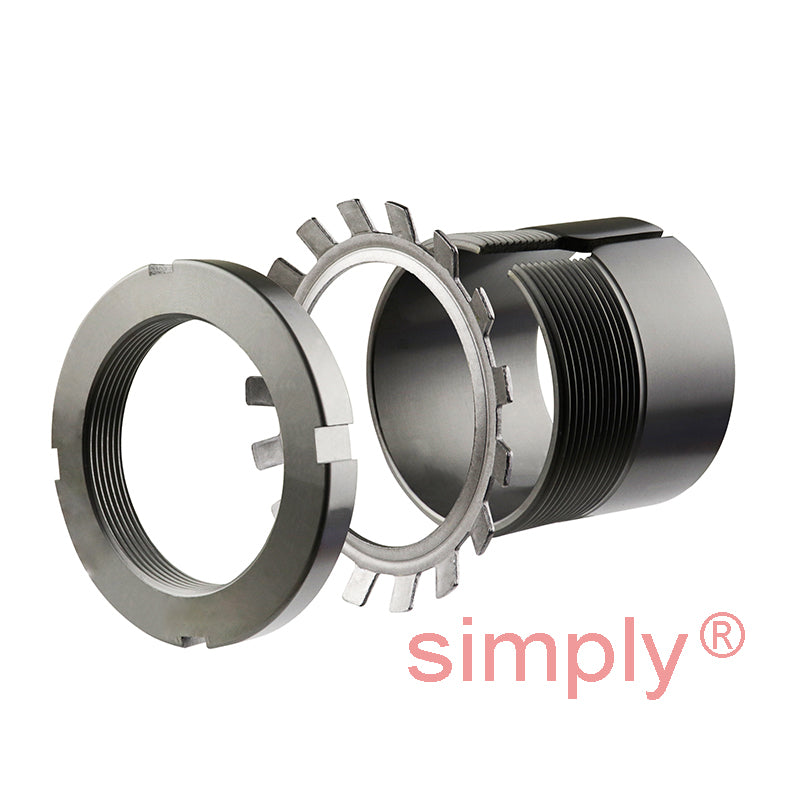

SKF H207 Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft

Name: SKF H207 Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
Brand: SKF
SKU: H207-SKF
Price: 14.30 EUR
Availability: InStock

€14,30 ex VAT

Sale Sold out

In stock

Price Break

2+ €10,89

5+ €10,28

10+ €10,16

20+ €10,04

49+ €9,91

74+ €9,79

99+ €9,18

199+ €9,06

249+ €8,94

499+ €8,81

999+ €8,57

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 30mm
Outside Diameter:: 52mm
Width:: 29mm

Technical

---	Dimensions
d1	30mm
d	35mm
d3	52mm
B1	29mm
B2	9mm
G	Thread 35x1.5mm
Weight	0.12 kg
---	Assembly Parts
Sleeve	H207
Nut	KM7
Washer	MB7
---	Matching Self Aligning Bearings
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1207K+taper+self+open>1207K</a>
