SKU: GLE50-KRR-B-INA

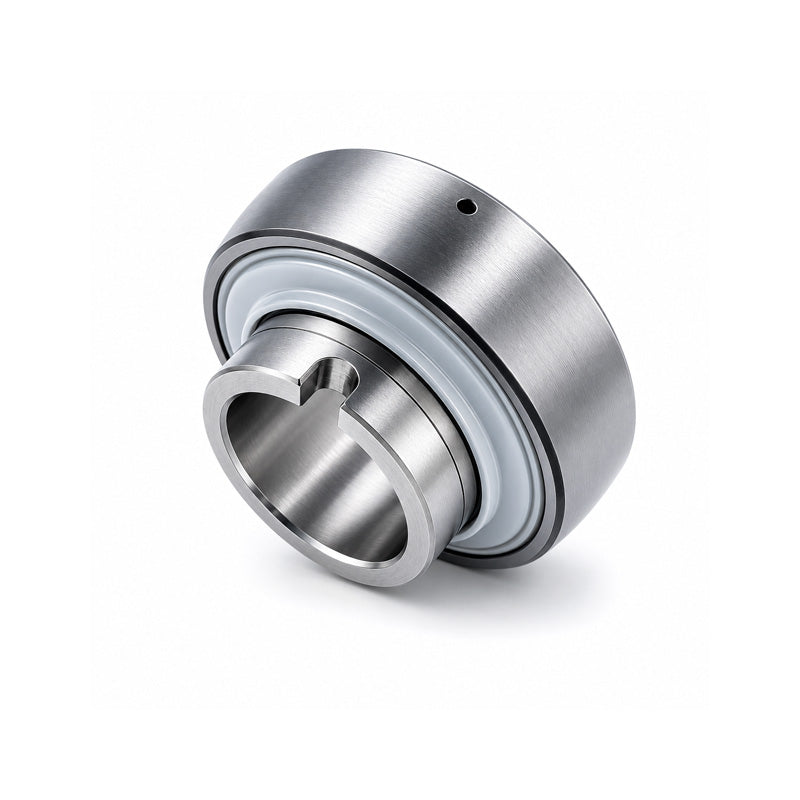

INA GLE50XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 50x90x49.2mm
INA GLE50XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 50x90x49.2mm
Regular price
€89,95
ex VAT
Regular price
Sale price
€89,95
ex VAT
In stock
Price Break
3+
€68,50
5+
€64,65
10+
€63,89
15+
€63,12
20+
€62,35
30+
€61,58
40+
€57,73
50+
€56,96
60+
€56,19
75+
€55,42
100+
€53,88
Description
Description
|
INA GLE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals with PTFE seal lips and a drive slot in the inner ring. These non-locating bearings are to be used at low speeds and loads to compensate for thermal elongation of the shaft. Due to the slot, they are easy to locate in a radial direction. Rotation is prevented by a drive pin on the shaft or a set collar with a pin. These bearings are suitable for drawn shafts up to grade h7. The outer ring has two lubrication holes as standard. Inner rings up to a bore diameter of 60mm have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 49.2mm
Technical
Technical
| d | 50mm |
|---|---|
| Dsp | 90mm |
| B | 49.2mm |
| b | 7mm |
| C | 22mm |
| C2 | 26.4mm |
| Ca | 6.9mm |
| D1 | 77.3mm |
| d1 | 62.8mm |
| N | 10mm |
| S | 19mm |
| Dynamic load Cr | 35000 N |
| Static load C0r | 23200 N |
| Weight | 0.76 kg |
