SKU: GE40-KLL-B-INA

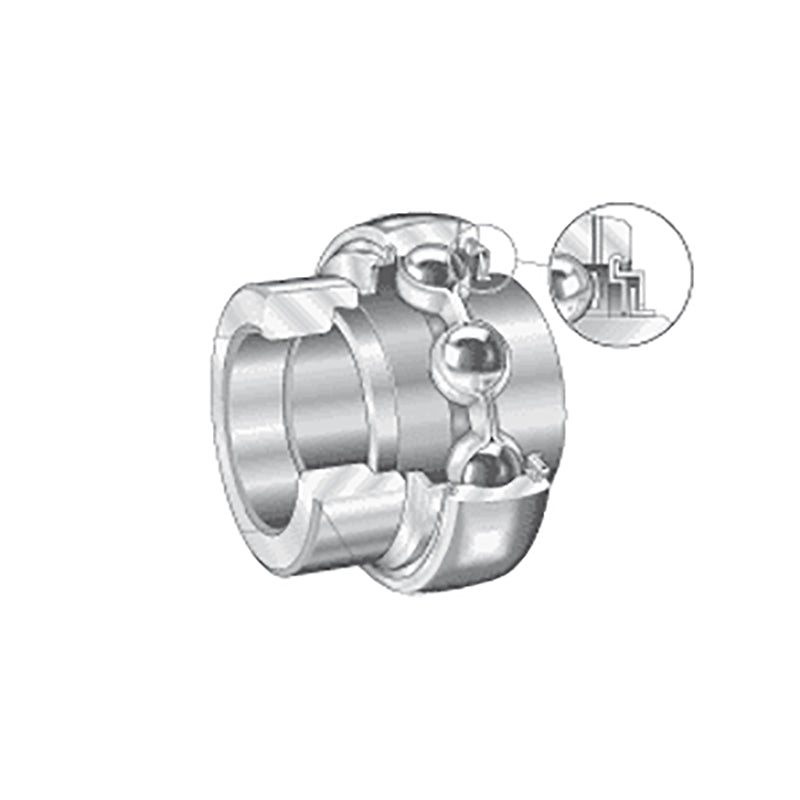

INA GE40XLKLLB Metric Spherical Outer Bearing Insert with L Seals and Eccentric Collar 40x80x56.5mm
INA GE40XLKLLB Metric Spherical Outer Bearing Insert with L Seals and Eccentric Collar 40x80x56.5mm
Regular price
€64,92
ex VAT
Regular price
Sale price
€64,92
ex VAT
In stock
Price Break
3+
€49,44
5+
€46,66
10+
€46,11
15+
€45,55
20+
€45,00
30+
€44,44
40+
€41,66
50+
€41,11
60+
€40,55
75+
€40,00
100+
€38,89
Description
Description
|
INA GE..KLL-B Series Inserts: Bearing insert with spherical outer race, L seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 56.5mm
Technical
Technical
| d | 40mm |
|---|---|
| Dsp | 80mm |
| B1 | 56.5mm |
| B | 42.9mm |
| C | 21mm |
| C2 | 28.1mm |
| Ca | 6.4mm |
| D1 | 68.3mm |
| d1 | 52.3mm |
| d3 max | 58mm |
| S | 21.4mm |
| W | 5mm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 19800 N |
| Weight | 0.75 kg |
