SKU: GE35-KRR-B-2C-INA
INA GE35KRRB2CA Metric Spherical Outer Bearing Insert with R Seals with Flinger Shields and Eccentric Collar 35x72x51.3mm - Allow 2-3 Days
INA GE35KRRB2CA Metric Spherical Outer Bearing Insert with R Seals with Flinger Shields and Eccentric Collar 35x72x51.3mm - Allow 2-3 Days
Regular price
€64,74
ex VAT
Regular price
Sale price
€64,74
ex VAT
In stock
Price Break
3+
€54,85
5+
€52,63
10+
€51,52
15+
€49,86
20+
€48,75
30+
€45,98
40+
€38,78
50+
€0,00
60+
€0,00
75+
€0,00
100+
€0,00
Description
Description
|

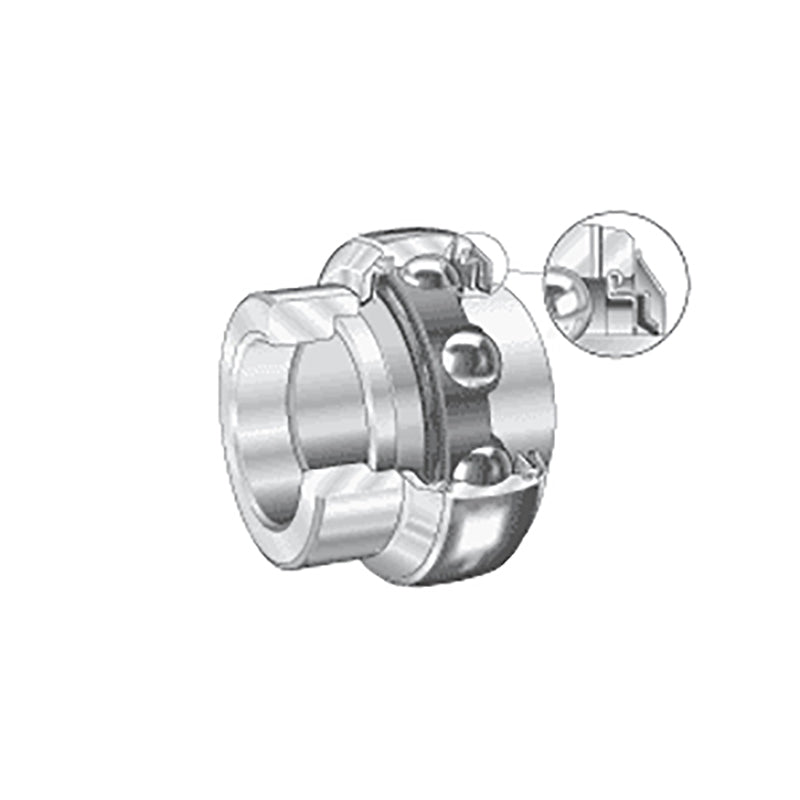

INA GE..KRR-B-2C Series Inserts: Bearing insert with spherical outer race, R seals with flinger shields and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The R seals are fitted with Corrotect®-coated flinger shields to protect the bearing against mechanical damage. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment, flinger shields protect against mechanical damage. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 51.3mm
Technical
Technical
| d | 35mm |
|---|---|
| Dsp | 72mm |
| B1 | 51.3mm |
| B | 37.7mm |
| C | 19mm |
| C2 | 29.2mm |
| Ca | 5.6mm |
| d1 | 46.8mm |
| d3 max | 51mm |
| S | 18.8mm |
| W | 5mm |
| Dynamic load Cr | 25500 N |
| Static load C0r | 15300 N |
| Weight | 0.58 kg |
