SKU: GE260ES2RS.EU

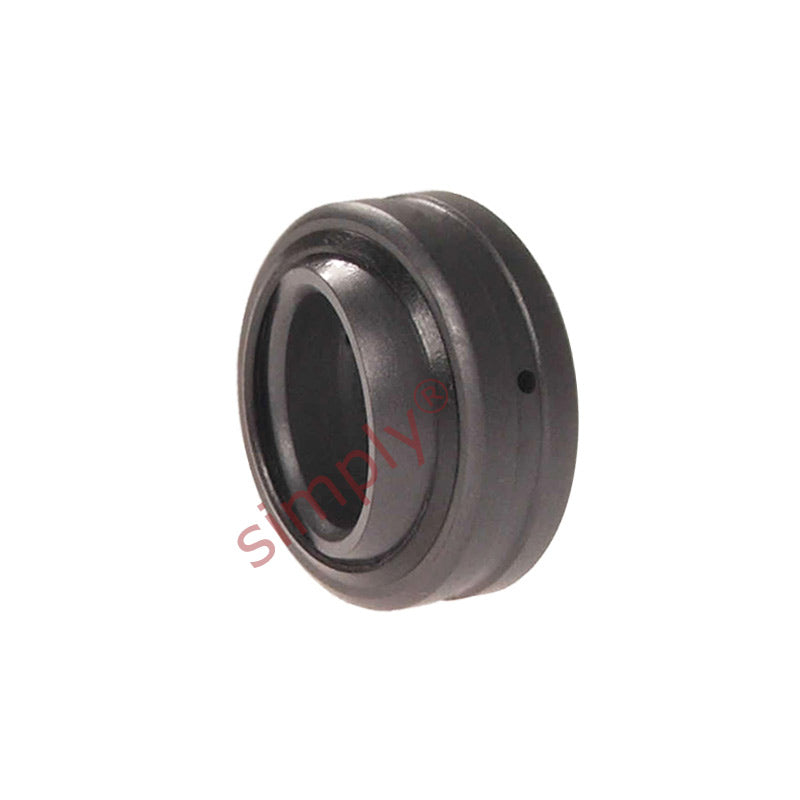

GE260ES2RS Rubber Sealed Spherical Plain Bearing 260x370x150x110mm
GE260ES2RS Rubber Sealed Spherical Plain Bearing 260x370x150x110mm
Regular price
€2.502,73
ex VAT
Regular price
Sale price
€2.502,73
ex VAT
In stock
Price Break
10+
€2.227,43
19+
€2.102,29
29+
€2.077,27
39+
€2.052,24
49+
€2.027,21
74+
€2.002,18
99+
€1.877,05
199+
€1.852,02
249+
€1.826,99
499+
€1.801,97
999+
€1.751,91
Couldn't load pickup availability
Description
Description
|
Rubber Sealed Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel, rubber seals Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 260mm
- Outside Diameter:
- 370mm
- Width:
- 150mm
Technical
Technical
| d | 260mm |
|---|---|
| D | 370mm |
| B | 150mm |
| C | 110mm |
| dk | 325mm |
| rs min | 1.1mm |
| r1s min | 1.1mm |
| Angle α | 7° |
| Dynamic load Co | 3030 kN |
| Static load Cor | 15190 kN |
| Weight | 51.54 kg |
