SKU: GE20-KRR-B-FA125.5-INA
INA GE20XLKRRBFA125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with R Seals and Eccentric Collar 20x47x43.7mm
INA GE20XLKRRBFA125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with R Seals and Eccentric Collar 20x47x43.7mm
Regular price
€35,96
ex VAT
Regular price
Sale price
€35,96
ex VAT
In stock
Price Break
3+
€27,39
5+
€25,85
10+
€25,54
15+
€25,23
20+
€24,92
30+
€24,62
40+
€23,08
50+
€22,77
60+
€22,46
75+
€22,15
100+
€21,54
Description
Description
|

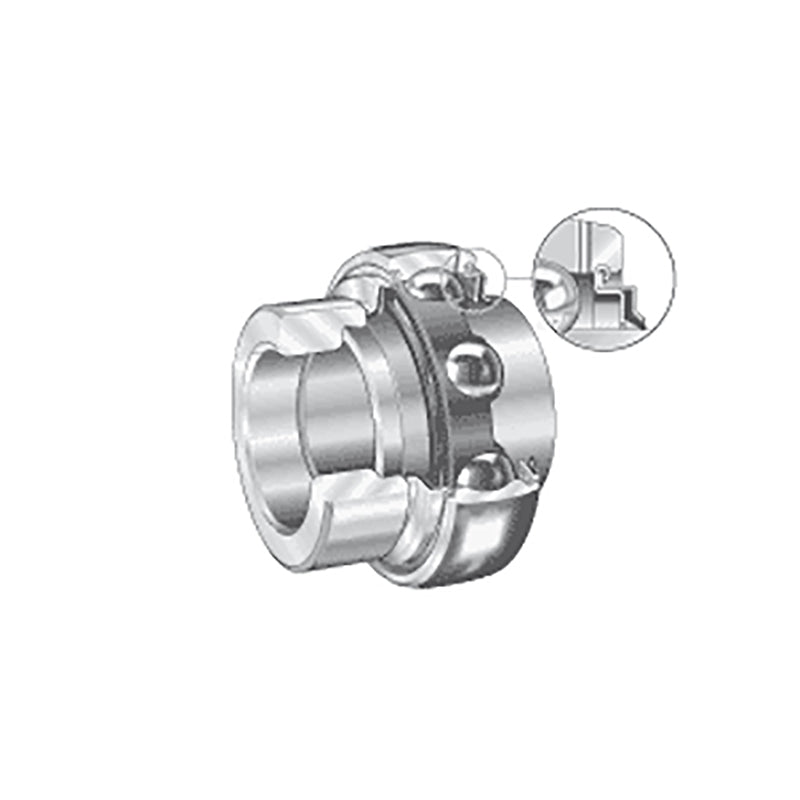

INA GE..KRR-B-FA125.5 Series Inserts: Bearing insert with spherical outer race, R seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment, anti-corrosion protection. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 43.7mm
Technical
Technical
| d | 20mm |
|---|---|
| Dsp | 47mm |
| B1 | 43.7mm |
| B | 34.1mm |
| C | 14mm |
| C2 | 16.6mm |
| Ca | 4mm |
| D1 | 37.4mm |
| d1 | 27.6mm |
| d3 max | 33mm |
| S | 17.1mm |
| W | 3mm |
| Dynamic load Cr | 12800 N |
| Static load C0r | 6600 N |
| Weight | 0.2 kg |
