SKU: GE20-ET-2RS-INA

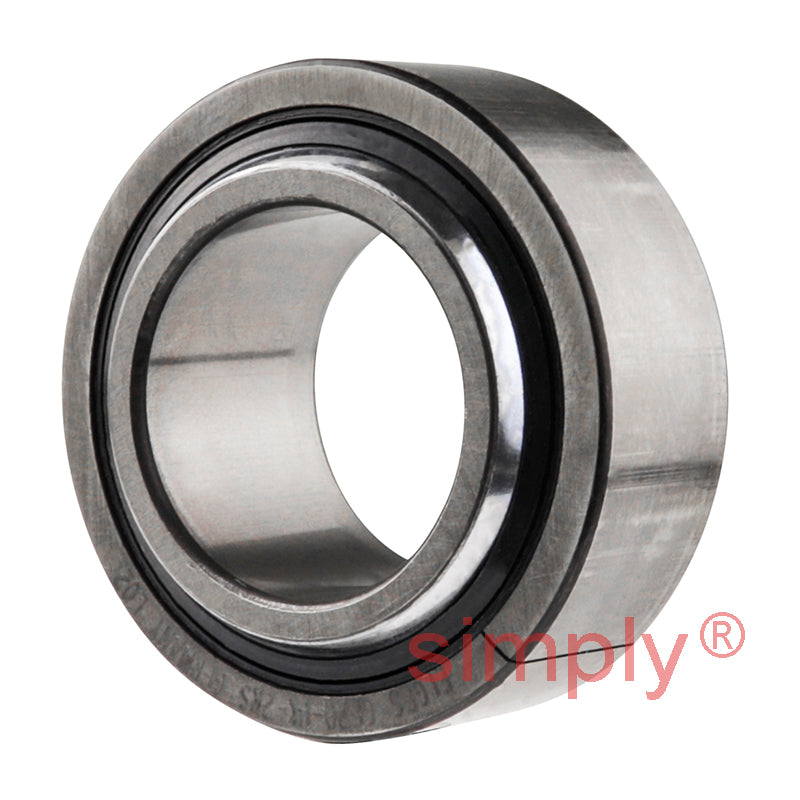

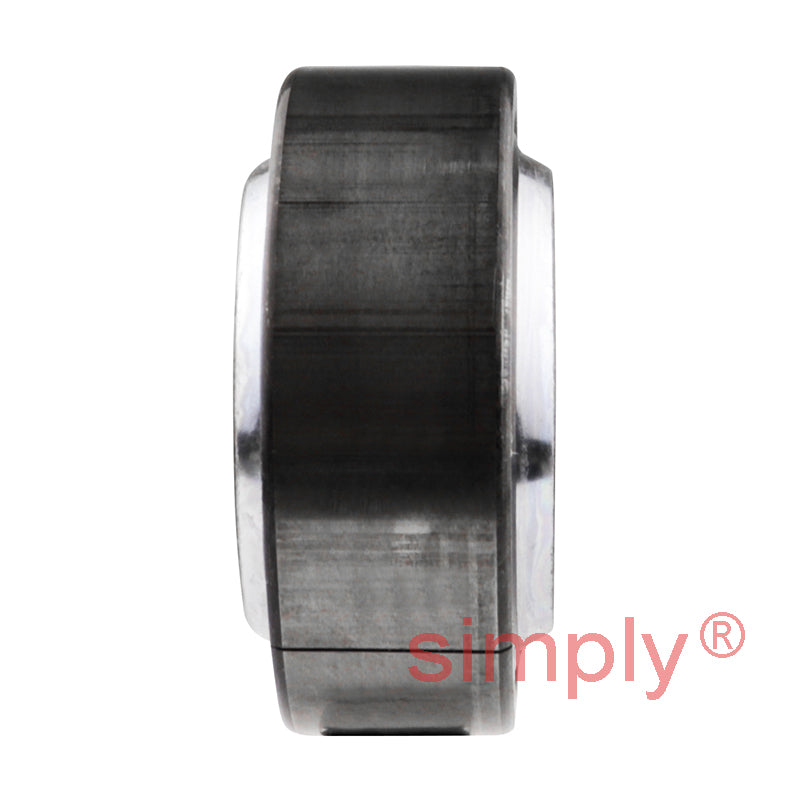

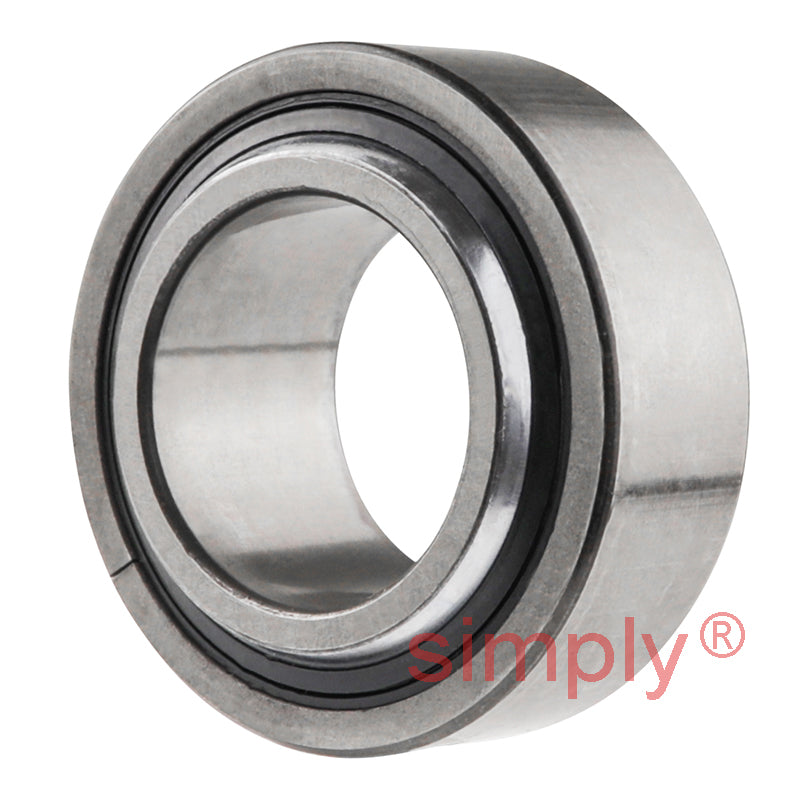

INA GE20ET2RS Steel / PTFE Spherical Plain Bearing 20x35x16mm
INA GE20ET2RS Steel / PTFE Spherical Plain Bearing 20x35x16mm
Regular price
€53,60
ex VAT
Regular price
Sale price
€53,60
ex VAT
In stock
Price Break
10+
€40,82
19+
€38,53
29+
€38,07
39+
€37,61
49+
€37,15
74+
€36,70
99+
€34,40
199+
€33,94
249+
€33,49
499+
€33,03
999+
€32,11
Description
Description
GE..-ET Series Spherical Plain Bearings: These maintenance-free spherical plain bearings are suitable for high load appliations where there is limited oscillating movement.
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 35mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 20mm (Tolerance: 0/-0.01) |
|---|---|
| D | 35mm (Tolerance: 0/-0.011) |
| B | 16mm (Tolerance: 0/-0.12) |
| Radial internal clearance | 0-0.04mm |
| C | 12mm (Tolerance: 0/-0.24) |
| Da min | 27.5mm |
| da max | 24.1mm |
| dk | 29mm |
| Chamfer dimension r1s min | 0.3mm |
| Chamfer dimension r2s min | 0.3mm |
| a | 9° |
| Mass | 0.06 kg |
| Basic dynamic load, radial Cr | 67900 N |
| Basic static load, rating Cor | 113000 N |
