SKU: GE180ES2RS.EU

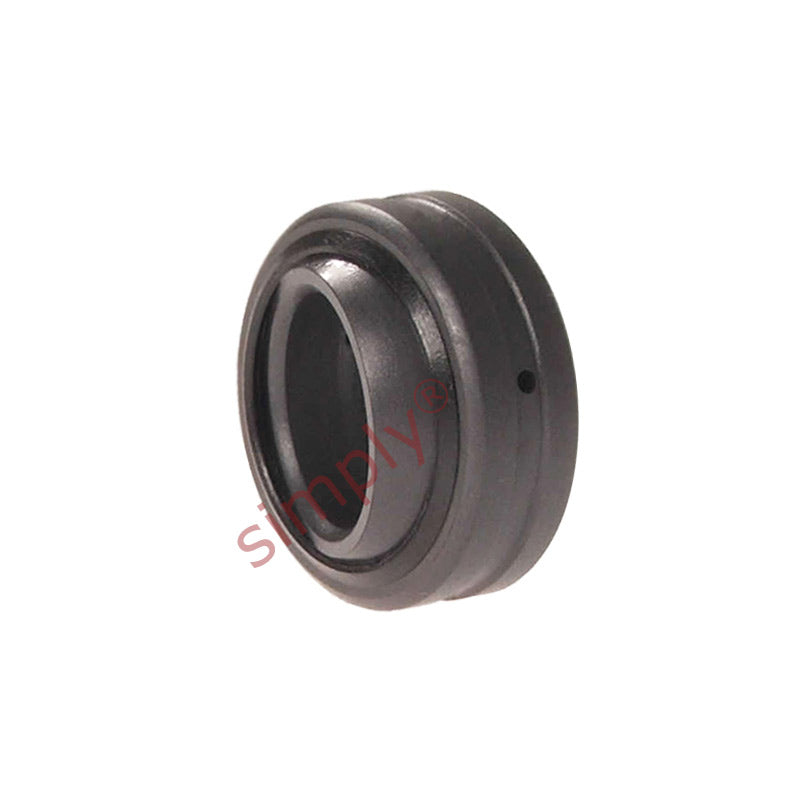

GE180ES2RS Rubber Sealed Spherical Plain Bearing 180x260x105x80mm
GE180ES2RS Rubber Sealed Spherical Plain Bearing 180x260x105x80mm
Regular price
€857,68
ex VAT
Regular price
Sale price
€857,68
ex VAT
In stock
Price Break
10+
€763,34
19+
€720,45
29+
€711,87
39+
€703,30
49+
€694,72
74+
€686,14
99+
€643,26
199+
€634,68
249+
€626,11
499+
€617,53
999+
€600,38
Couldn't load pickup availability
Description
Description
|
Rubber Sealed Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel, rubber seals Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 180mm
- Outside Diameter:
- 260mm
- Width:
- 105mm
Technical
Technical
| d | 180mm |
|---|---|
| D | 260mm |
| B | 105mm |
| C | 80mm |
| dk | 225mm |
| rs min | 1.1mm |
| r1s min | 1.1mm |
| Angle α | 6° |
| Dynamic load Co | 1530 kN |
| Static load Cor | 7650 kN |
| Weight | 18.65 kg |
