SKU: GAY25-NPP-B-INA

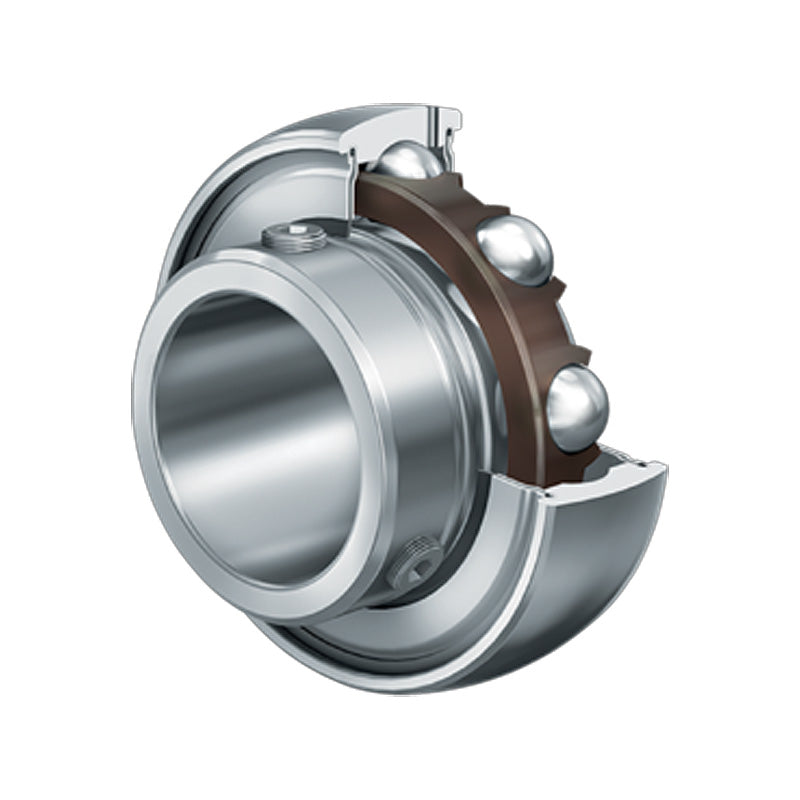

INA GAY25XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Grub Screws 25x52x27mm
INA GAY25XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Grub Screws 25x52x27mm
Regular price
€24,94
ex VAT
Regular price
Sale price
€24,94
ex VAT
In stock
Price Break
3+
€18,99
5+
€17,93
10+
€17,71
15+
€17,50
20+
€17,29
30+
€17,07
40+
€16,01
50+
€15,79
60+
€15,58
75+
€15,36
100+
€14,94
Description
Description
|

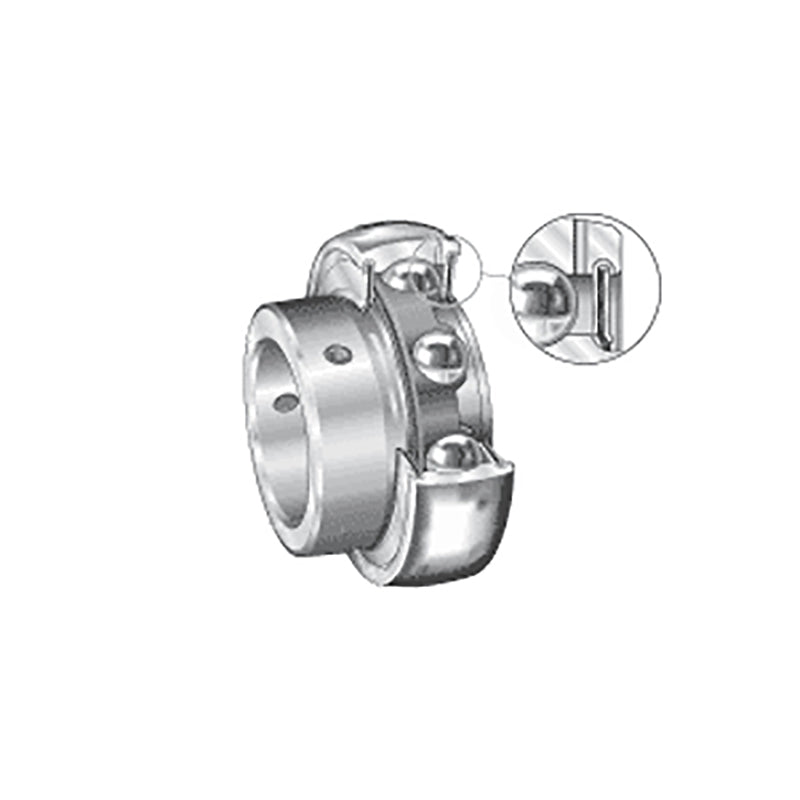

INA GAY..NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and grub screws. In these radial insert ball bearings, the inner ring is located on the shaft by means of two grub screws offset by 120 degrees. This location method is suitable for bearing arrangements with a constant direction of rotation or, under low speed and load, for an alternating direction of rotation. The grub screws are self-retaining and have a fine pitch thread with cup point for secure location of the bearings. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 27mm
Technical
Technical
| d | 25mm |
|---|---|
| Dsp | 52mm |
| B | 27mm |
| A | 5mm |
| C | 15mm |
| Ca | 3.9mm |
| d1 | 33.5mm |
| d2 | 30.4mm |
| S | 7.5mm |
| W | 2.5mm |
| Dynamic load Cr | 14000 N |
| Static load C0r | 7800 N |
| Weight | 0.16 kg |
