SKU: FYTJ30TF-SKF

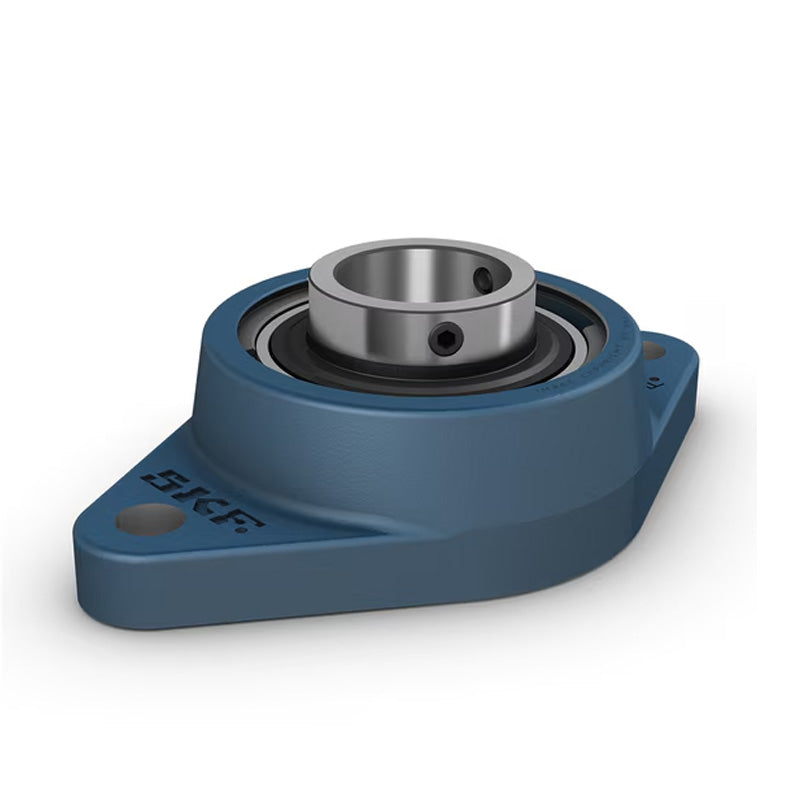

SKF FYTJ30TF Oval Cast Housing with Grub Screw 30mm Insert
SKF FYTJ30TF Oval Cast Housing with Grub Screw 30mm Insert
Regular price
€58,57
ex VAT
Regular price
Sale price
€58,57
ex VAT
In stock
Price Break
10+
€44,61
20+
€42,10
30+
€41,60
40+
€41,10
50+
€40,60
75+
€40,10
100+
€37,59
200+
€37,09
250+
€36,59
500+
€36,09
1000+
€35,08
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Style:
- FYTJ
- Bolt Hole Centres:
- 117mm
Technical
Technical
| d | 30mm |
|---|---|
| A1 | 30.5mm |
| A2 | 13.5mm |
| B | 38.1mm |
| Da | 76.2mm |
| H | 148mm |
| J | 117mm |
| L | 80mm |
| N | 16mm |
| G | 14mm |
| s1 | 22.2mm |
| T | 40.2mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 6300 rpm |
| Weight | 0.93 kg |
