SKU: FYTJ20TF-SKF

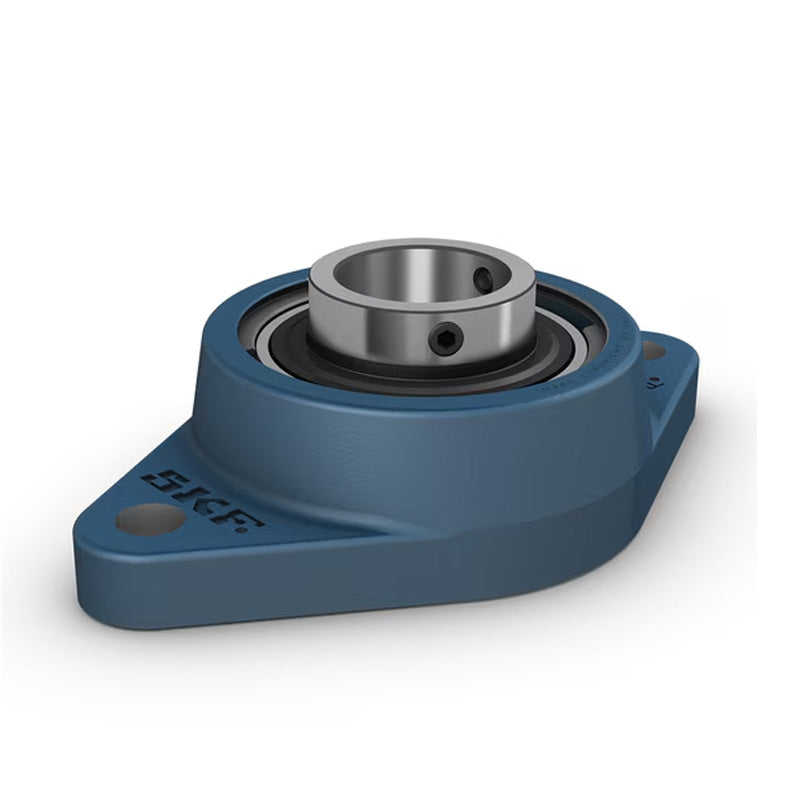

SKF FYTJ20TF Oval Cast Housing with Grub Screw 20mm Insert
SKF FYTJ20TF Oval Cast Housing with Grub Screw 20mm Insert
Regular price
€42,40
ex VAT
Regular price
Sale price
€42,40
ex VAT
In stock
Price Break
10+
€32,29
20+
€30,48
30+
€30,11
40+
€29,75
50+
€29,39
75+
€29,02
100+
€27,21
200+
€26,85
250+
€26,48
500+
€26,12
1000+
€25,40
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Style:
- FYTJ
- Bolt Hole Centres:
- 90mm
Technical
Technical
| d | 20mm |
|---|---|
| A1 | 25.5mm |
| A2 | 12mm |
| B | 31mm |
| Da | 50.8mm |
| H | 112mm |
| J | 90mm |
| L | 60mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 18.3mm |
| T | 33.3mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Limiting speed | 8500 rpm |
| Weight | 0.43 kg |
