SKU: FYTB35FM-SKF

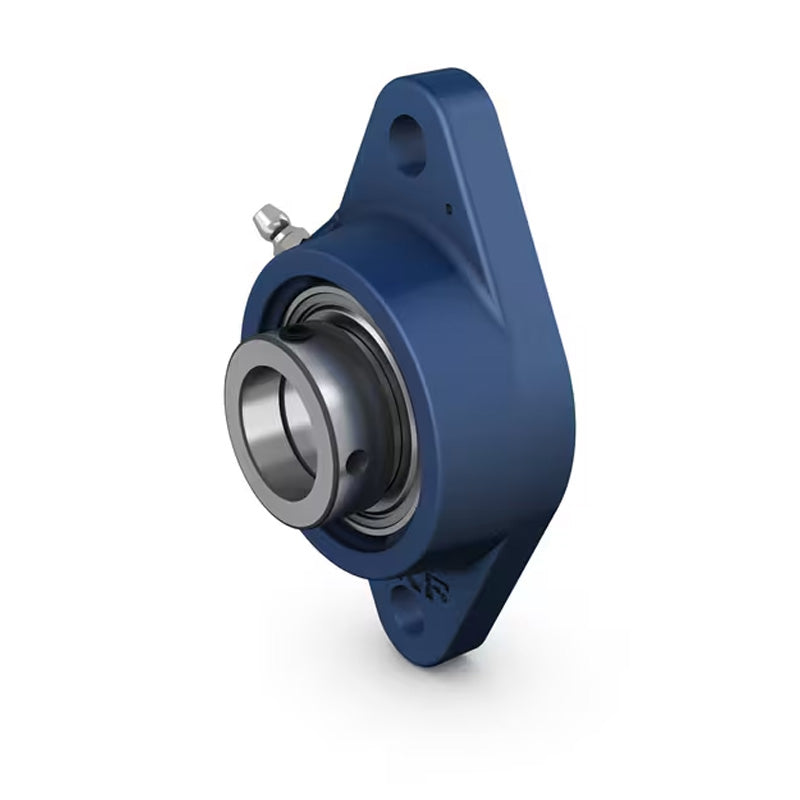

SKF FYTB35FM Oval Cast Housing with Grub Screw 35mm Insert
SKF FYTB35FM Oval Cast Housing with Grub Screw 35mm Insert
Regular price
€70,00
ex VAT
Regular price
Sale price
€70,00
ex VAT
In stock
Price Break
10+
€62,30
19+
€58,80
29+
€58,10
39+
€57,40
49+
€56,70
74+
€56,00
99+
€52,50
199+
€51,80
249+
€51,10
499+
€50,40
999+
€49,00
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- FYTB
- Bolt Hole Centres:
- 130mm
Technical
Technical
| d | 35mm |
|---|---|
| A1 | 34.5mm |
| A2 | 13mm |
| B1 | 38.9mm |
| Da | 88.9mm |
| H | 158mm |
| J | 130mm |
| L | 96mm |
| N | 14mm |
| G | 12mm |
| s1 | 29.4mm |
| T | 50.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| A5 | 22mm |
| Weight | 1.3 kg |
| Compatible end cover closed | ECY207 |
