SKU: FYTB20WF-SKF

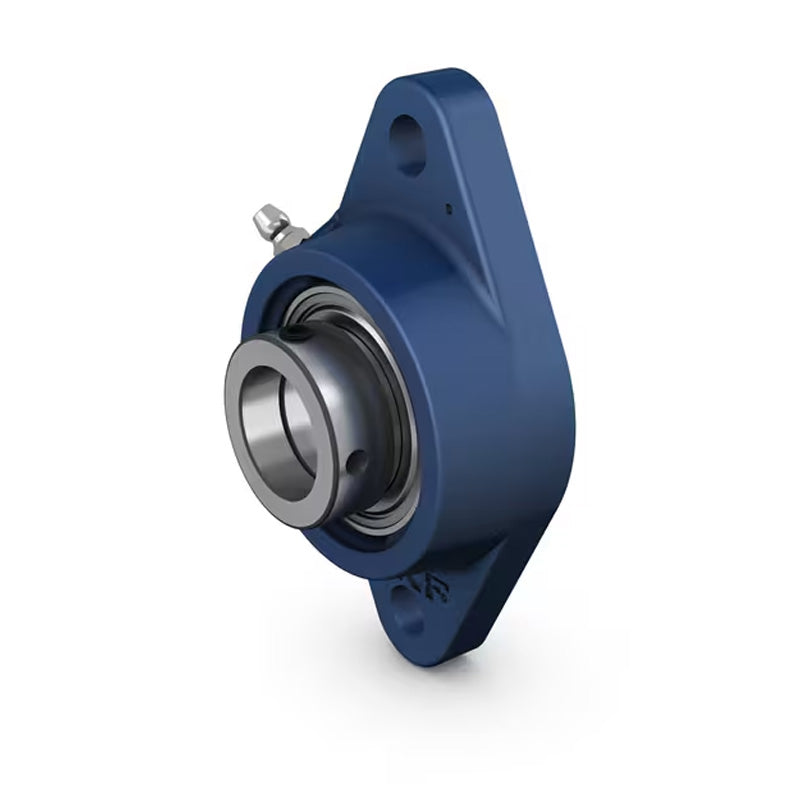

SKF FYTB20WF Oval Cast Housing with Grub Screw 20mm Insert
SKF FYTB20WF Oval Cast Housing with Grub Screw 20mm Insert
Regular price
€54,30
ex VAT
Regular price
Sale price
€54,30
ex VAT
In stock
Price Break
10+
€41,36
20+
€39,04
30+
€38,57
40+
€38,11
50+
€37,64
75+
€37,18
100+
€34,85
200+
€34,39
250+
€33,92
500+
€33,46
1000+
€32,53
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Style:
- FYTB
- Bolt Hole Centres:
- 90mm
Technical
Technical
| d | 20mm |
|---|---|
| A1 | 29.5mm |
| A2 | 11mm |
| B1 | 43.7mm |
| Da | 50.8mm |
| H | 112mm |
| J | 90mm |
| L | 60.5mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 26.6mm |
| T | 45.6mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Limiting speed | 8500 rpm |
| A5 | 18.5mm |
| Weight | 0.55 kg |
| Compatible end cover closed | ECY204 |
