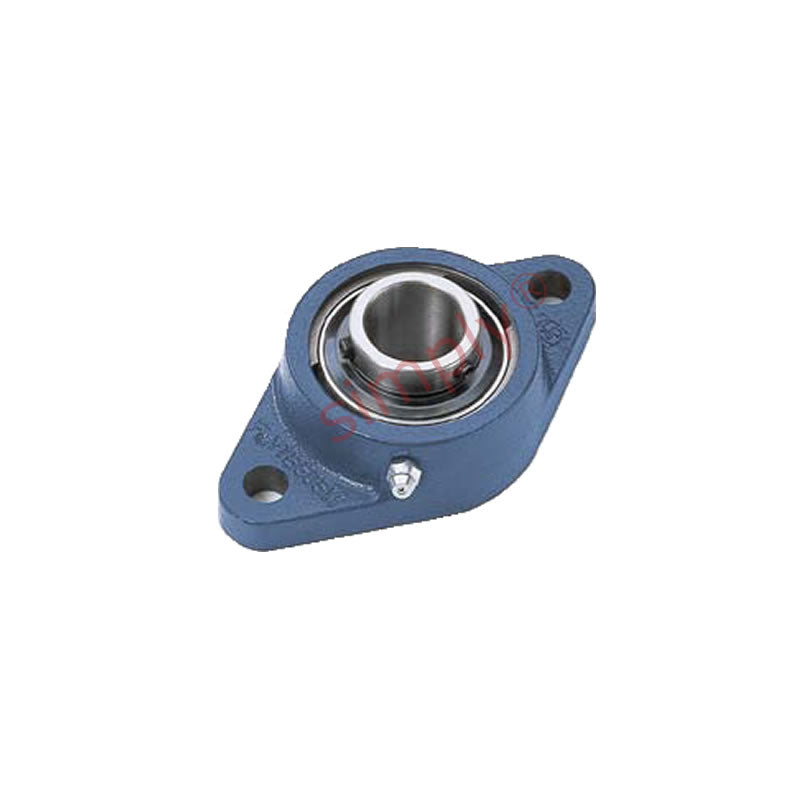

SKF FYT1-15/16TF Oval Cast Housing with Grub Screw 1-15/16 inch Insert
SKF FYT1-15/16TF Oval Cast Housing with Grub Screw 1-15/16 inch Insert
Regular price
€128,70
ex VAT
Regular price
Sale price
€128,70
ex VAT
In stock
Price Break
10+
€114,54
19+
€108,11
29+
€106,82
39+
€105,53
49+
€104,25
74+
€102,96
99+
€96,53
199+
€95,24
249+
€93,95
499+
€92,66
999+
€90,09
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- FYT
- Bolt Hole Centres:
- 157.2mm
Technical
Technical
| d | 1-15/16 inch |
|---|---|
| A1 | 43mm |
| A2 | 15mm |
| B | 51.6mm |
| H | 189mm |
| J | 157.2mm |
| L | 116mm |
| N | 15.9mm |
| G | 14mm |
| s1 | 32.6mm |
| T | 60.6mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit | 0.98 kN |
| Limiting speed | 4000 rpm |
| Weight | 2.25 kg |
| Housing | Insert |
