SKU: FYT1.1/4FM-SKF

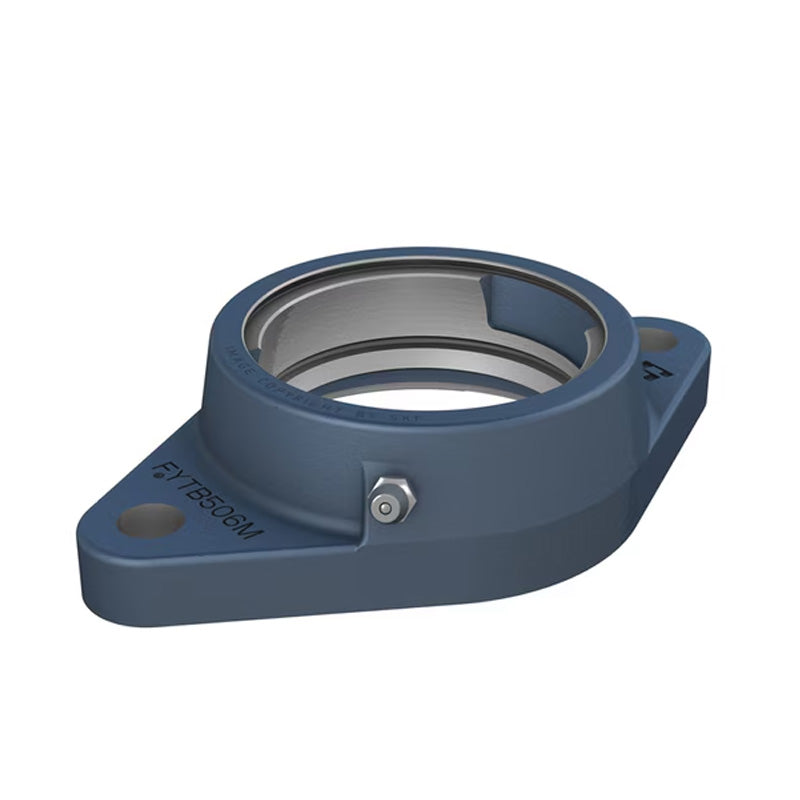

SKF FYT1-1/4FM Oval Cast Housing with Grub Screw 1-1/4 inch Insert
SKF FYT1-1/4FM Oval Cast Housing with Grub Screw 1-1/4 inch Insert
Regular price
€65,73
ex VAT
Regular price
Sale price
€65,73
ex VAT
In stock
Price Break
10+
€50,06
20+
€47,25
30+
€46,68
40+
€46,12
50+
€45,56
75+
€45,00
100+
€42,18
200+
€41,62
250+
€41,06
500+
€40,50
1000+
€39,37
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- FYT
- Bolt Hole Centres:
- 330.2mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| A1 | 34.5mm |
| A2 | 33mm |
| B1 | 38.9mm |
| H | 356mm |
| J | 330.2mm |
| L | 96mm |
| N | 34.3mm |
| G | 32mm |
| s1 | 29.4mm |
| T | 50.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit | 0.655 kN |
| Limiting speed | 5300 rpm |
| Weight | 1.4 kg |
| Housing | Insert |
