SKU: FYT1.1/2FM-SKF

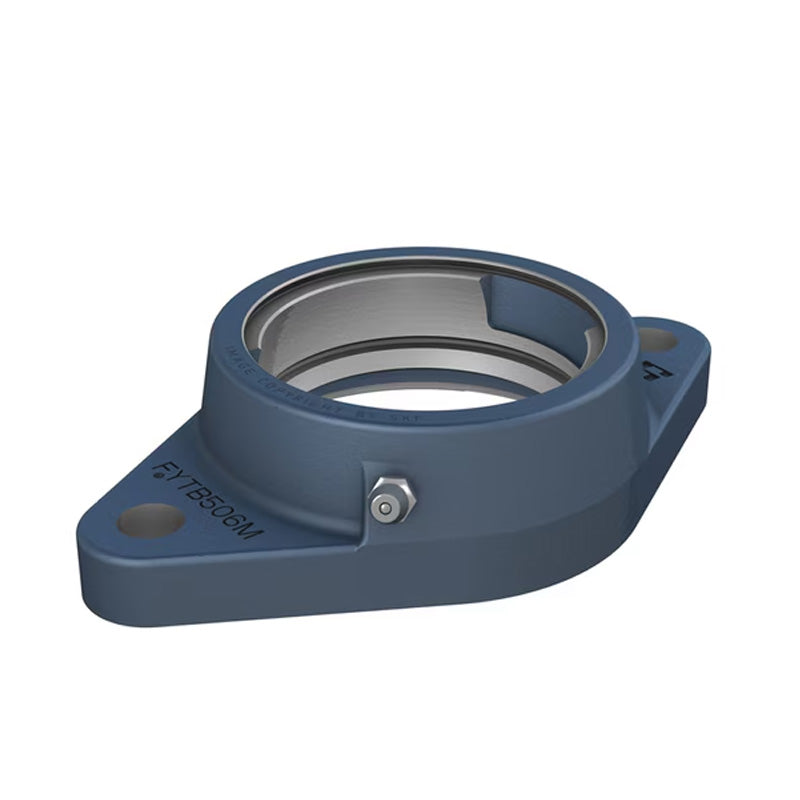

SKF FYT1-1/2FM Oval Cast Housing with Grub Screw 1-1/2 inch Insert
SKF FYT1-1/2FM Oval Cast Housing with Grub Screw 1-1/2 inch Insert
Regular price
€89,81
ex VAT
Regular price
Sale price
€89,81
ex VAT
In stock
Price Break
10+
€68,39
20+
€64,55
30+
€63,78
40+
€63,01
50+
€62,25
75+
€61,48
100+
€57,63
200+
€56,87
250+
€56,10
500+
€55,33
1000+
€53,79
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- FYT
- Bolt Hole Centres:
- 343.7mm
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| A1 | 38.5mm |
| A2 | 34mm |
| B1 | 43.7mm |
| H | 373.5mm |
| J | 343.7mm |
| L | 302mm |
| N | 34.3mm |
| G | 32mm |
| s1 | 32.7mm |
| T | 56.5mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit | 0.8 kN |
| Limiting speed | 4800 rpm |
| Weight | 1.75 kg |
| Housing | Insert |
