SKU: FYM2.7/16TF-SKF

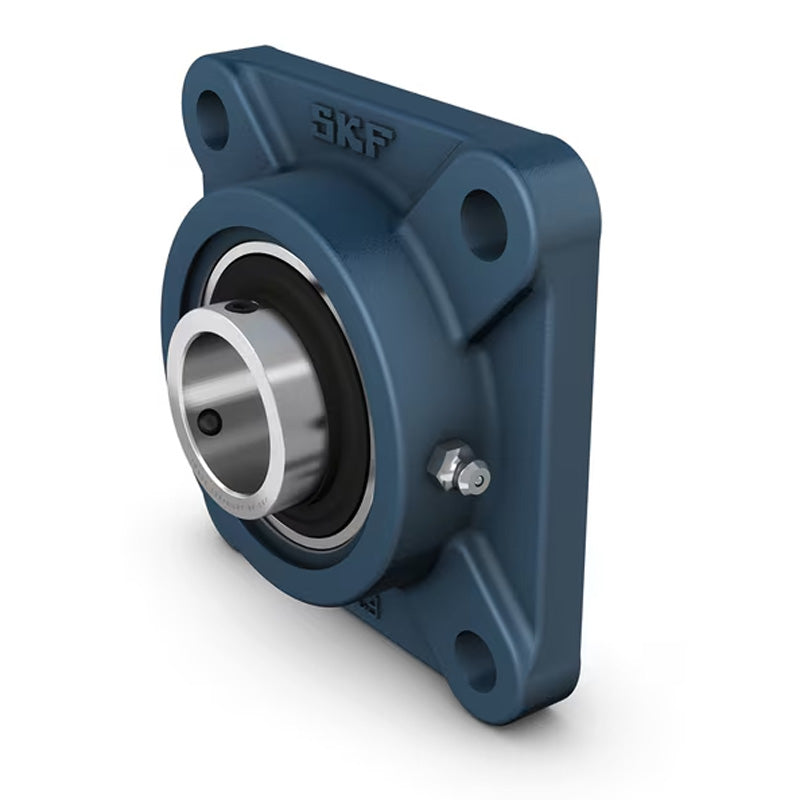

SKF FYM2-7/16TF Square Cast Housing with Grub Screw 2-7/16 inch Insert
SKF FYM2-7/16TF Square Cast Housing with Grub Screw 2-7/16 inch Insert
Regular price
€262,54
ex VAT
Regular price
Sale price
€262,54
ex VAT
In stock
Price Break
10+
€199,95
20+
€188,71
30+
€186,47
40+
€184,22
50+
€181,97
75+
€179,73
100+
€168,49
200+
€166,25
250+
€164,00
500+
€161,75
1000+
€157,26
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Style:
- FYM
- Bolt Hole Centres:
- 149.3mm
Technical
Technical
| d | 2-7/16 inch |
|---|---|
| A1 | 57.15mm |
| A2 | 17.5mm |
| B | 69.6mm |
| J | 149.3mm |
| L | 187.5mm |
| G | 16mm |
| s1 | 39.7mm |
| T | 76.2mm |
| Static load Cr | 44 kN |
| Dynamic load Cor | 62.4 kN |
| Fatigue load limit | 1.86 kN |
| Limiting speed | 2800 rpm |
| Weight | 6 kg |
| Housing | Insert |
