SKU: FYM1.7/16TF-SKF

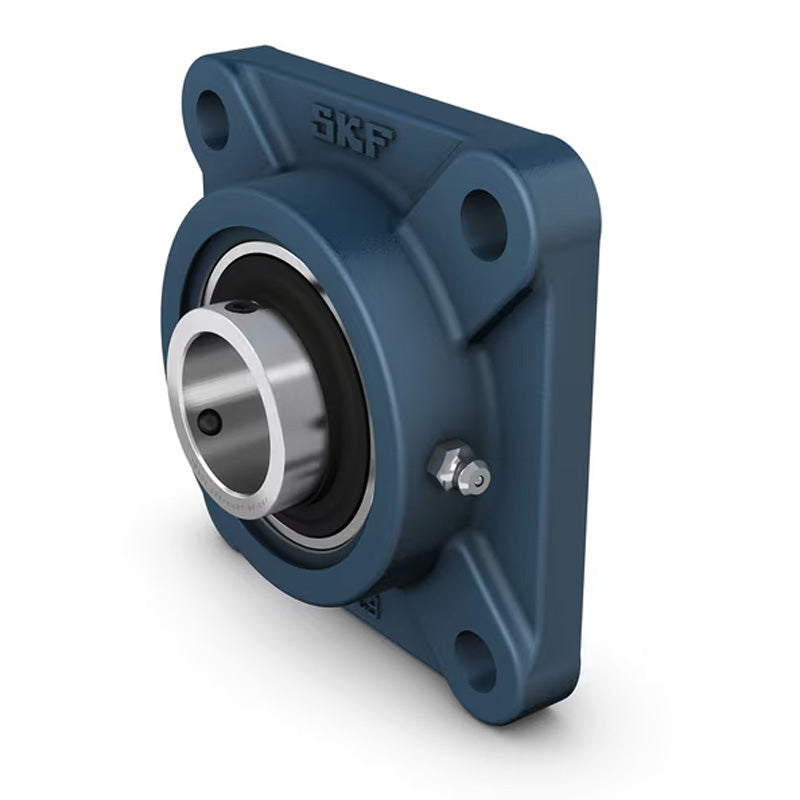

SKF FYM1-7/16TF Square Cast Housing with Grub Screw 1-7/16 inch Insert
SKF FYM1-7/16TF Square Cast Housing with Grub Screw 1-7/16 inch Insert
Regular price
€71,06
ex VAT
Regular price
Sale price
€71,06
ex VAT
In stock
Price Break
10+
€54,12
20+
€51,08
30+
€50,47
40+
€49,87
50+
€49,26
75+
€48,65
100+
€45,61
200+
€45,00
250+
€44,39
500+
€43,79
1000+
€42,57
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- FYM
- Bolt Hole Centres:
- 101.5mm
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| A1 | 38.5mm |
| A2 | 14mm |
| B | 49.2mm |
| J | 101.5mm |
| L | 130mm |
| G | 12mm |
| s1 | 30.2mm |
| T | 54.2mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit | 0.8 kN |
| Limiting speed | 4800 rpm |
| Weight | 2 kg |
| Housing | Insert |
