SKU: FYM1.3/4TF-SKF

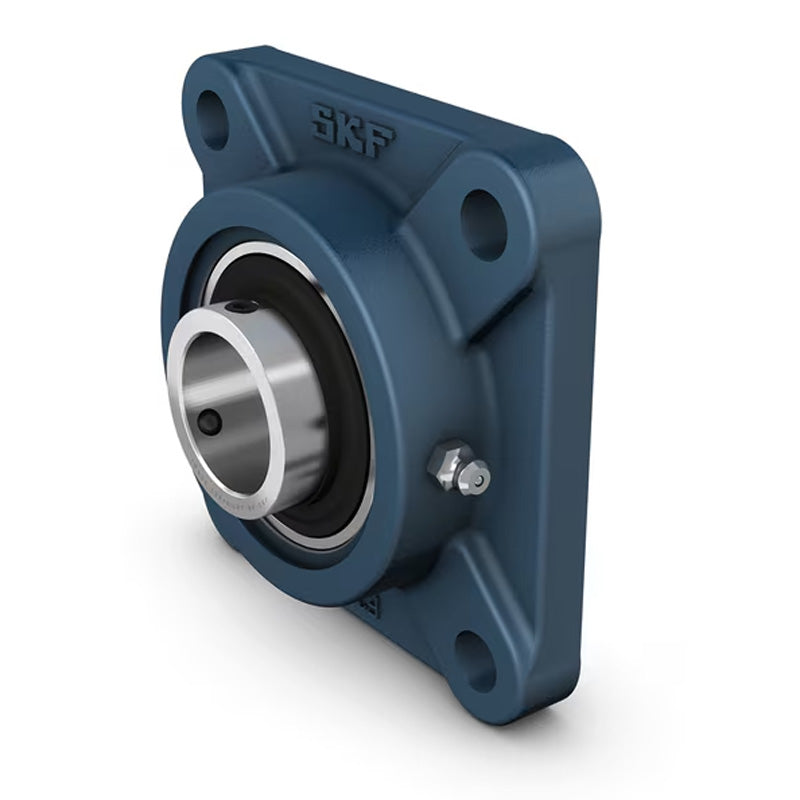

SKF FYM1-3/4TF Square Cast Housing with Grub Screw 1-3/4 inch Insert
SKF FYM1-3/4TF Square Cast Housing with Grub Screw 1-3/4 inch Insert
Regular price
€93,72
ex VAT
Regular price
Sale price
€93,72
ex VAT
In stock
Price Break
10+
€71,38
20+
€67,37
30+
€66,56
40+
€65,76
50+
€64,96
75+
€64,16
100+
€60,15
200+
€59,35
250+
€58,54
500+
€57,74
1000+
€56,14
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- FYM
- Bolt Hole Centres:
- 111mm
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| A1 | 43mm |
| A2 | 15mm |
| B | 51.6mm |
| J | 111mm |
| L | 143mm |
| G | 14mm |
| s1 | 32.6mm |
| T | 60.6mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit | 0.98 kN |
| Limiting speed | 4000 rpm |
| Weight | 2.5 kg |
| Housing | Insert |
