SKU: FYJ60TF-SKF

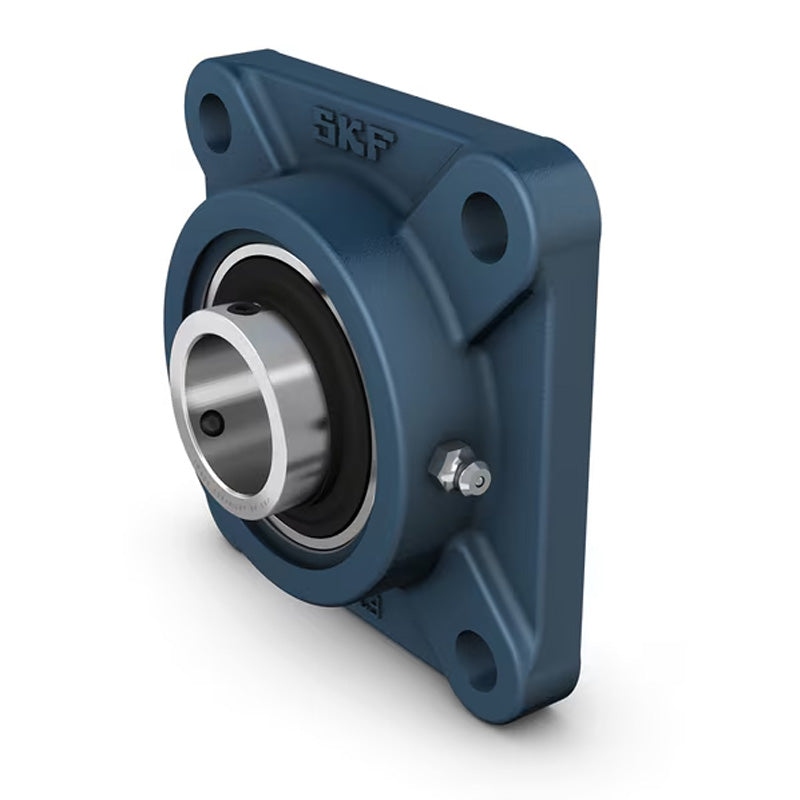

SKF FYJ60TF Square Cast Housing with Grub Screw 60mm Insert
SKF FYJ60TF Square Cast Housing with Grub Screw 60mm Insert
Regular price
€177,66
ex VAT
Regular price
Sale price
€177,66
ex VAT
In stock
Price Break
10+
€135,31
20+
€127,71
30+
€126,19
40+
€124,67
50+
€123,15
75+
€121,62
100+
€114,02
200+
€112,50
250+
€110,98
500+
€109,46
1000+
€106,42
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Style:
- FYJ
- Bolt Hole Centres:
- 143mm
Technical
Technical
| d | 60mm |
|---|---|
| A1 | 48mm |
| A2 | 18mm |
| B | 65.1mm |
| Da | 161.9mm |
| J | 143mm |
| L | 175mm |
| N | 19mm |
| G | 16mm |
| s1 | 39.7mm |
| T | 68.7mm |
| Static load Cr | 36 kN |
| Dynamic load Cor | 52.7 kN |
| Fatigue load limit Pu | 1.53 kN |
| Limiting speed | 3400 rpm |
| A5 | 35.5mm |
| Weight | 4.5 kg |
