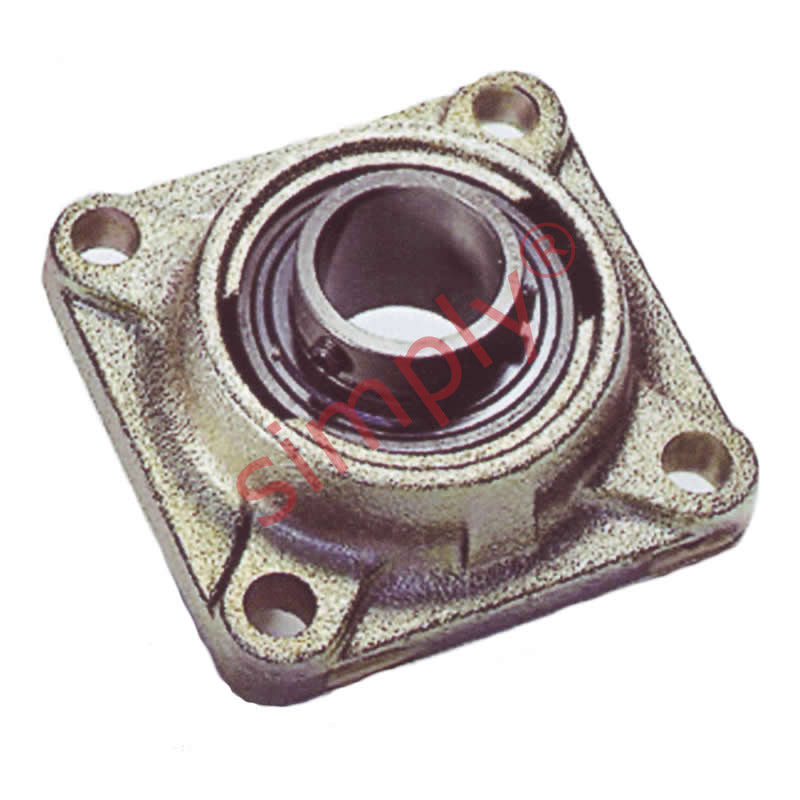

SKF FY60TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 60mm
SKF FY60TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 60mm
Regular price
€489,59
ex VAT
Regular price
Sale price
€489,59
ex VAT
In stock
Price Break
10+
€372,87
19+
€351,93
29+
€347,74
39+
€343,55
49+
€339,36
74+
€335,17
99+
€314,22
199+
€310,03
249+
€305,84
499+
€301,65
999+
€293,27
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 60mm |
|---|---|
| A1 | 52mm |
| A2 | 17mm |
| B | 65.1mm |
| J | 143mm |
| L | 175mm |
| N | 19mm |
| G | 16mm |
| T | 73.7mm |
| Dynamic load C | 52.7 kN |
| Static load Co | 36 kN |
| Weight | 4.65 kg |
