SKU: FY45TF/VA201-SKF

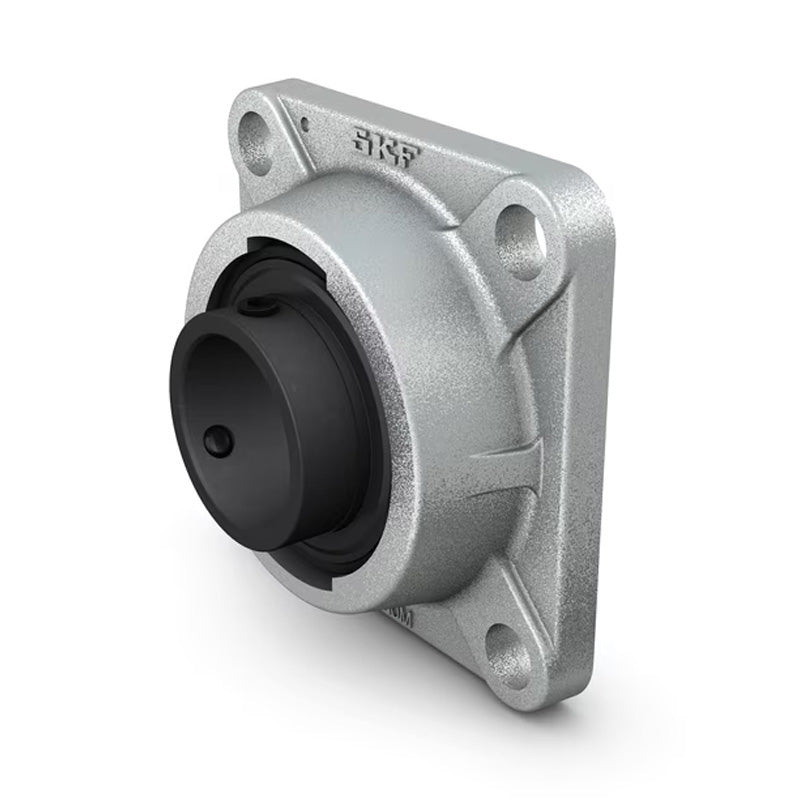

SKF FY45TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 45mm
SKF FY45TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 45mm
Regular price
€314,30
ex VAT
Regular price
Sale price
€314,30
ex VAT
In stock
Price Break
10+
€239,38
19+
€225,93
29+
€223,24
39+
€220,55
49+
€217,86
74+
€215,17
99+
€201,72
199+
€199,03
249+
€196,34
499+
€193,65
999+
€188,28
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 45mm |
|---|---|
| A1 | 39mm |
| A2 | 14mm |
| B | 49.2mm |
| J | 105mm |
| L | 137mm |
| N | 15.9mm |
| G | 14mm |
| T | 54.2mm |
| Dynamic load C | 33.2 kN |
| Static load Co | 21.6 kN |
| Weight | 2.1 kg |
