SKU: FY3/4TF/VA228-SKF

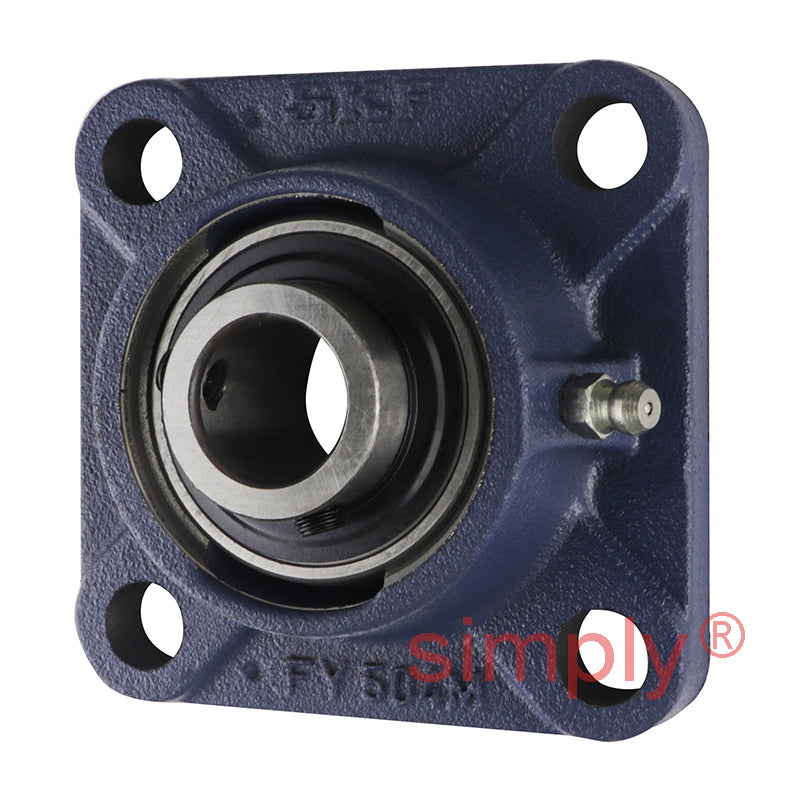

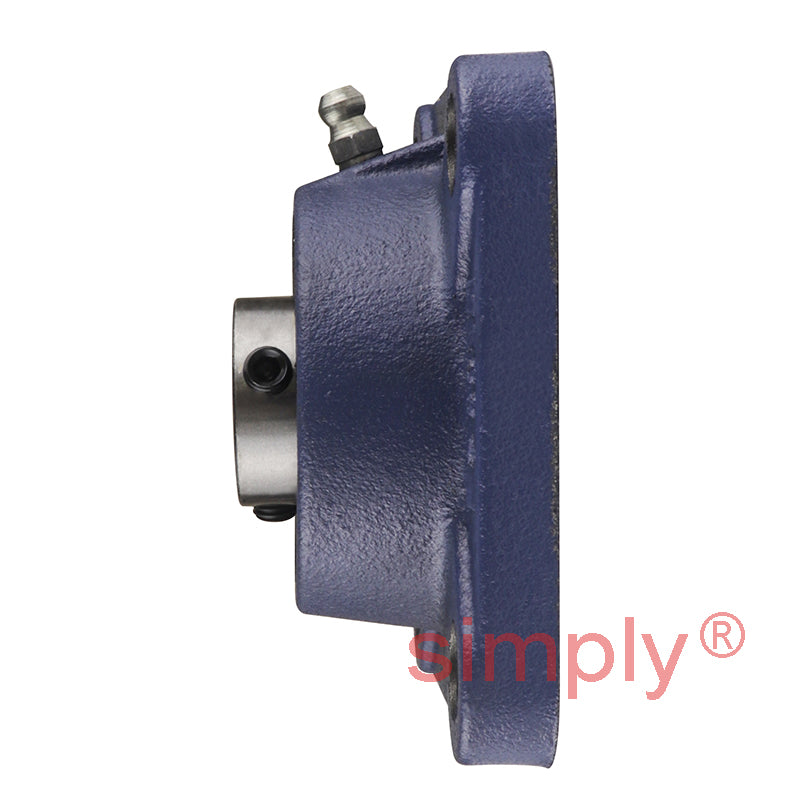

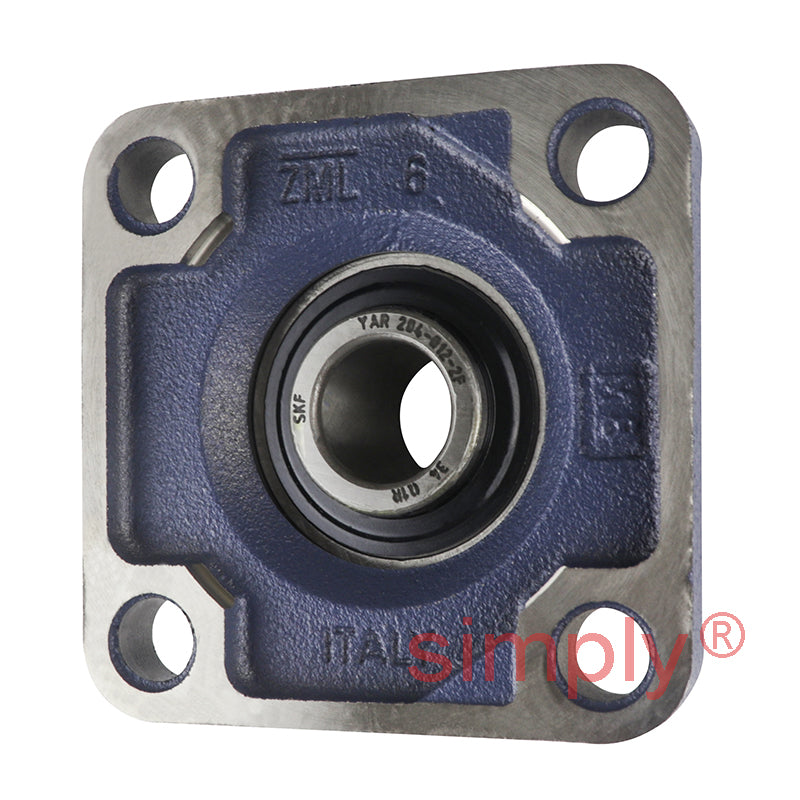

SKF FY3/4TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 3/4inch
SKF FY3/4TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 3/4inch
Regular price
€110,49
ex VAT
Regular price
Sale price
€110,49
ex VAT
In stock
Price Break
10+
€84,15
19+
€79,42
29+
€78,48
39+
€77,53
49+
€76,59
74+
€75,64
99+
€70,91
199+
€69,97
249+
€69,02
499+
€68,08
999+
€66,19
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 3/4 inch |
|---|---|
| A1 | 29.5mm |
| A2 | 11mm |
| B | 31mm |
| J | 63.5mm |
| L | 86mm |
| N | 11.1mm |
| G | 10mm |
| T | 37.3mm |
| Dynamic load C | 12.7 kN |
| Static load Co | 6.55 kN |
| Weight | 0.63 kg |
