SKU: FY3/4FM-SKF

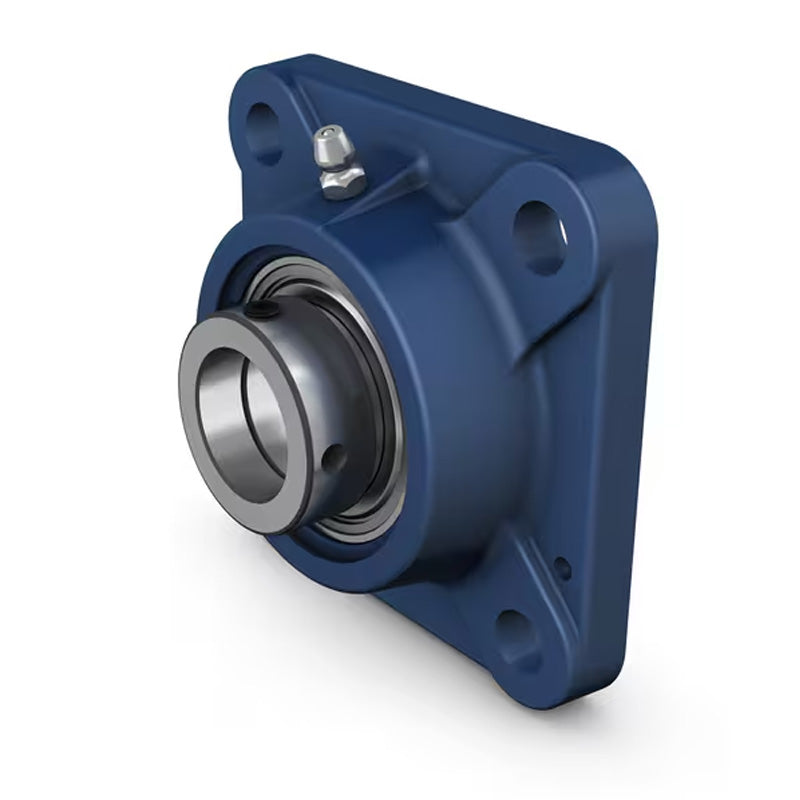

SKF FY3/4FM Square Cast Housing with Eccentric Collar 3/4 inch Insert
SKF FY3/4FM Square Cast Housing with Eccentric Collar 3/4 inch Insert
Regular price
€60,23
ex VAT
Regular price
Sale price
€60,23
ex VAT
In stock
Price Break
10+
€45,87
20+
€43,30
30+
€42,78
40+
€42,27
50+
€41,75
75+
€41,24
100+
€38,66
200+
€38,14
250+
€37,63
500+
€37,11
1000+
€36,08
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- FY
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| d | 3/4 inch |
|---|---|
| A1 | 29.5mm |
| A2 | 11mm |
| B1 | 31mm |
| J | 63.5mm |
| L | 86mm |
| G | 10mm |
| s1 | 23.5mm |
| T | 42.5mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit | 0.28 kN |
| Limiting speed | 8500 rpm |
| Weight | 0.63 kg |
| Housing | Insert |
