SKU: FY20TF/VA201-SKF

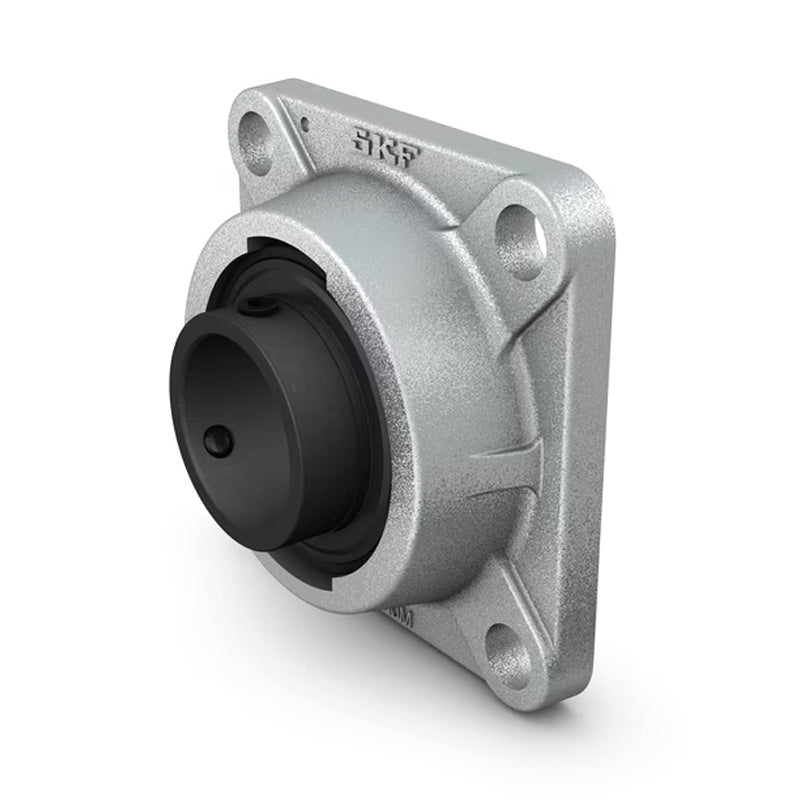

SKF FY20TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 20mm
SKF FY20TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 20mm
Regular price
€177,52
ex VAT
Regular price
Sale price
€177,52
ex VAT
In stock
Price Break
10+
€135,20
19+
€127,60
29+
€126,08
39+
€124,56
49+
€123,05
74+
€121,53
99+
€113,93
199+
€112,41
249+
€110,89
499+
€109,37
999+
€106,34
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 20mm |
|---|---|
| A1 | 29.5mm |
| A2 | 11mm |
| B | 31mm |
| J | 63.5mm |
| L | 86mm |
| N | 11.1mm |
| G | 10mm |
| T | 37.3mm |
| Dynamic load C | 12.7 kN |
| Static load Co | 6.55 kN |
| Weight | 0.6 kg |
