SKU: FY2.7/16WF-SKF

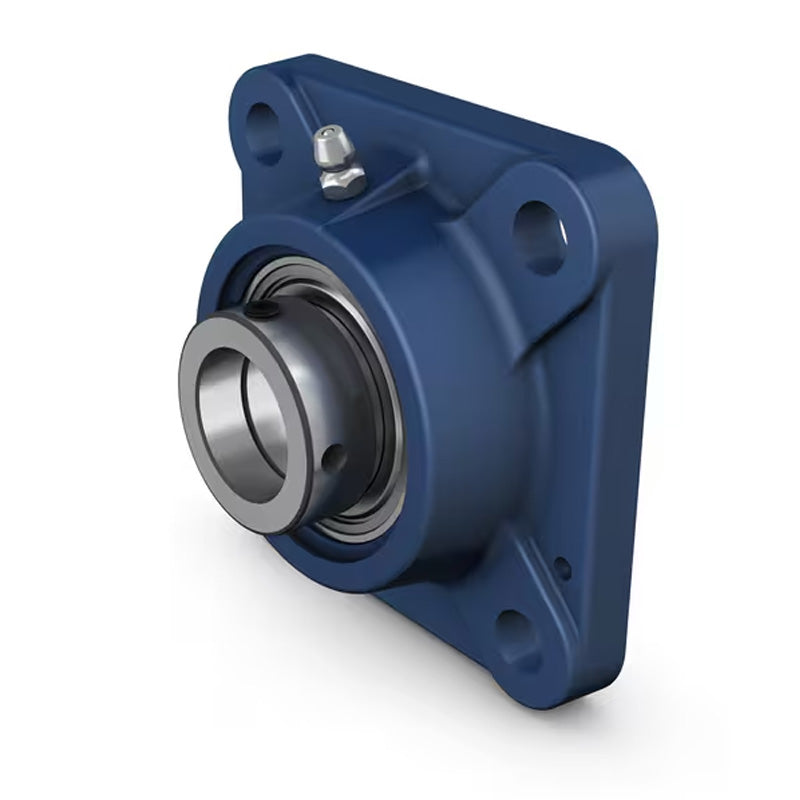

SKF FY2-7/16WF Square Cast Housing with Eccentric Collar 2-7/16 inch Insert
SKF FY2-7/16WF Square Cast Housing with Eccentric Collar 2-7/16 inch Insert
Regular price
€352,58
ex VAT
Regular price
Sale price
€352,58
ex VAT
In stock
Price Break
10+
€268,52
20+
€253,44
30+
€250,42
40+
€247,40
50+
€244,38
75+
€241,37
100+
€226,28
200+
€223,26
250+
€220,25
500+
€217,23
1000+
€211,20
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Style:
- FY
- Bolt Hole Centres:
- 143mm
Technical
Technical
| d | 2-7/16 inch |
|---|---|
| A1 | 52mm |
| A2 | 17mm |
| B1 | 77.8mm |
| J | 143mm |
| L | 175mm |
| G | 16mm |
| s1 | 46.8mm |
| T | 80.8mm |
| Static load Cr | 36 kN |
| Dynamic load Cor | 52.7 kN |
| Fatigue load limit | 1.53 kN |
| Limiting speed | 3400 rpm |
| Weight | 5.05 kg |
| Housing | Insert |
