SKU: FY2.1/2TF-SKF

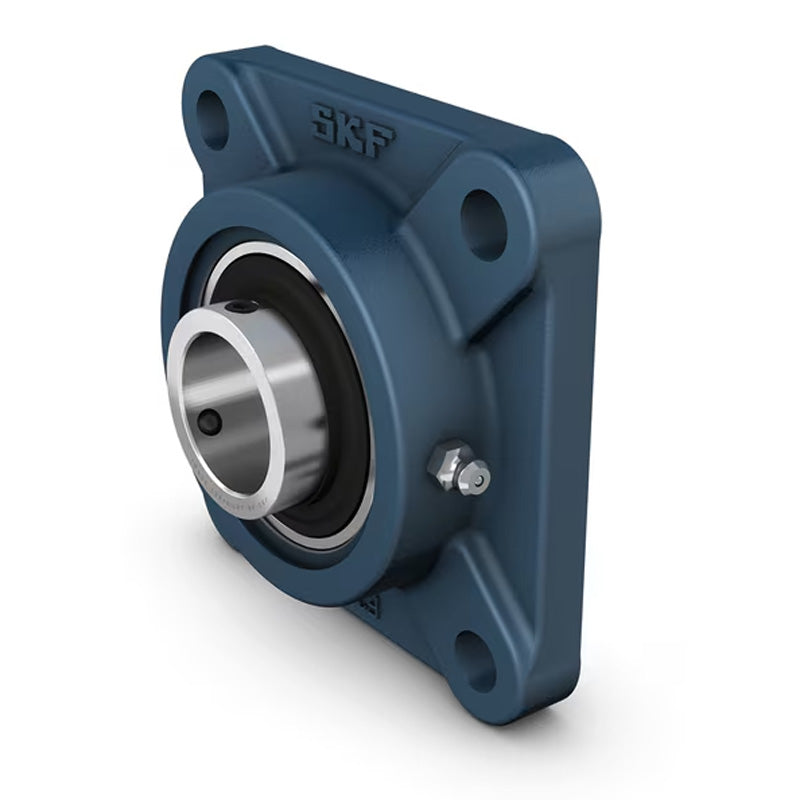

SKF FY2-1/2TF Square Cast Housing with Grub Screw 2-1/2 inch Insert
SKF FY2-1/2TF Square Cast Housing with Grub Screw 2-1/2 inch Insert
Regular price
€254,25
ex VAT
Regular price
Sale price
€254,25
ex VAT
In stock
Price Break
10+
€193,63
20+
€182,76
30+
€180,58
40+
€178,40
50+
€176,23
75+
€174,05
100+
€163,17
200+
€161,00
250+
€158,82
500+
€156,65
1000+
€152,30
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- FY
- Bolt Hole Centres:
- 149.5mm
Technical
Technical
| d | 2-1/2 inch |
|---|---|
| A1 | 52.5mm |
| A2 | 17mm |
| B | 68.3mm |
| Da | 161.9mm |
| J | 149.5mm |
| L | 187mm |
| N | 18mm |
| G | 16mm |
| s1 | 42.9mm |
| T | 76.9mm |
| Static load Cr | 40 kN |
| Dynamic load Cor | 57.2 kN |
| Fatigue load limit | 1.7 kN |
| Limiting speed | 3000 rpm |
| Weight | 5.4 kg |
| Housing | FY513M |
| Insert | YAR213-208-2F |
