SKU: FY15TF-SKF

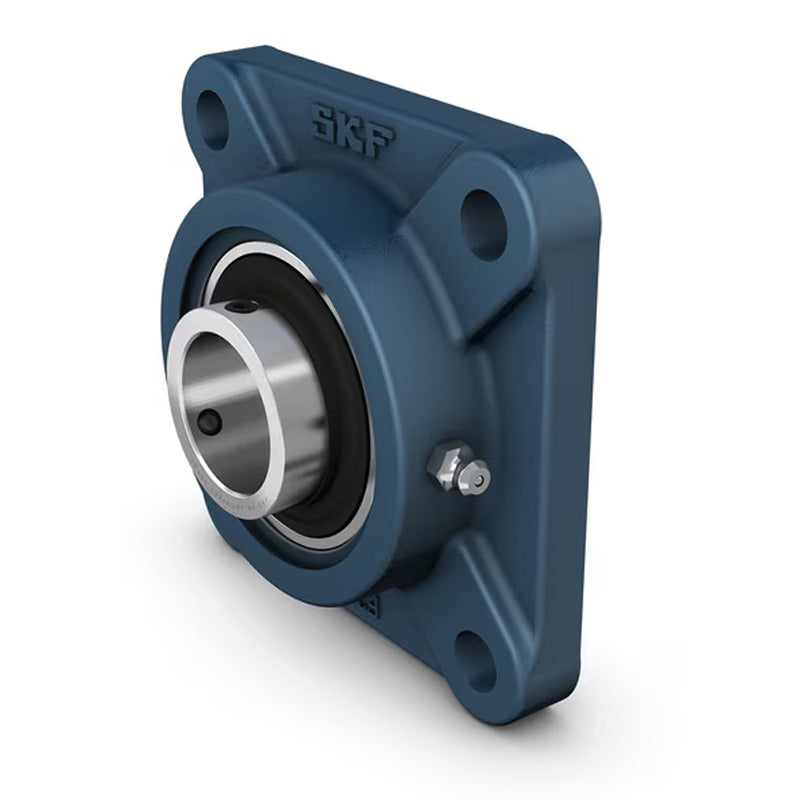

SKF FY15TF Square Cast Housing with Grub Screw 15mm Insert
SKF FY15TF Square Cast Housing with Grub Screw 15mm Insert
Regular price
€28,04
ex VAT
Regular price
Sale price
€28,04
ex VAT
In stock
Price Break
10+
€24,96
19+
€23,55
29+
€23,27
39+
€22,99
49+
€22,71
74+
€22,43
99+
€21,03
199+
€20,75
249+
€20,47
499+
€20,19
999+
€19,63
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15mm
- Style:
- FY
- Bolt Hole Centres:
- 54mm
Technical
Technical
| d | 15mm |
|---|---|
| A1 | 26mm |
| A2 | 11mm |
| B | 27.4mm |
| Da | 55.6mm |
| J | 54mm |
| L | 76mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 15.9mm |
| T | 32.9mm |
| Static load Cr | 4.75 kN |
| Dynamic load Cor | 9.56 kN |
| Fatigue load limit Pu | 0.2 kN |
| Limiting speed | 9500 rpm |
| Weight | 0.45 kg |
