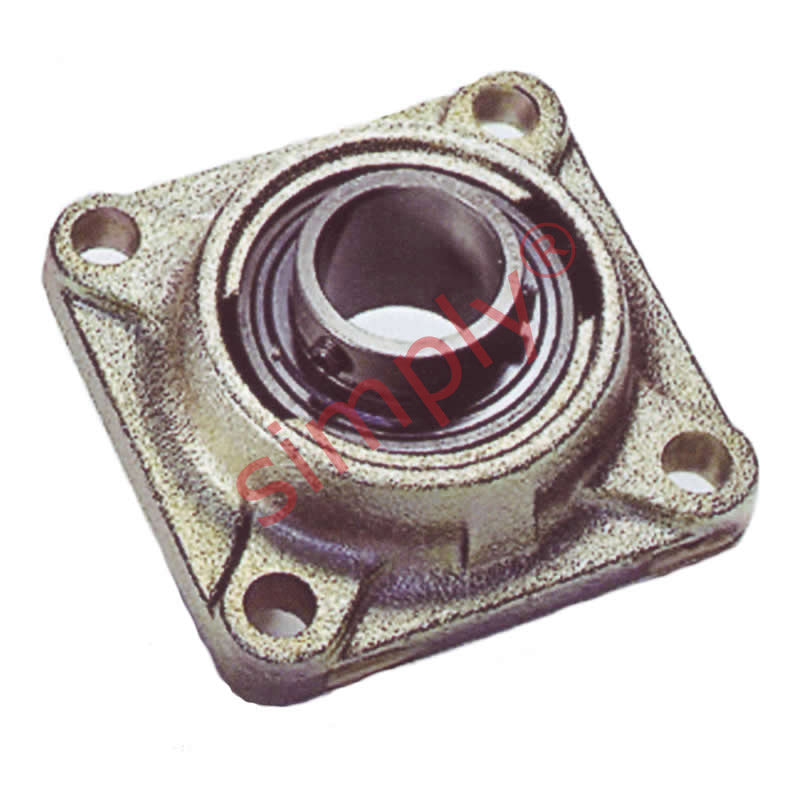

SKF FY1-TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1inch

Name: SKF FY1-TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1inch
Brand: SKF
SKU: FY1.TF/VA228-SKF
Price: 197.77 EUR
Availability: InStock

€197,77 ex VAT

Sale Sold out

In stock

Price Break

10+ €150,62

19+ €142,16

29+ €140,47

39+ €138,77

49+ €137,08

74+ €135,39

99+ €126,93

199+ €125,24

249+ €123,54

499+ €121,85

999+ €118,47

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 25.4mm = 1 inch
Temperature Range:: High Temp

Technical

d	1 inch
A1	30mm
A2	12mm
B	34.1mm
J	70mm
L	95mm
N	12.7mm
G	10mm
T	38.8mm
Dynamic load C	14 kN
Static load Co	7.8 kN
Weight	0.79 kg
