SKU: FY1.FM-SKF

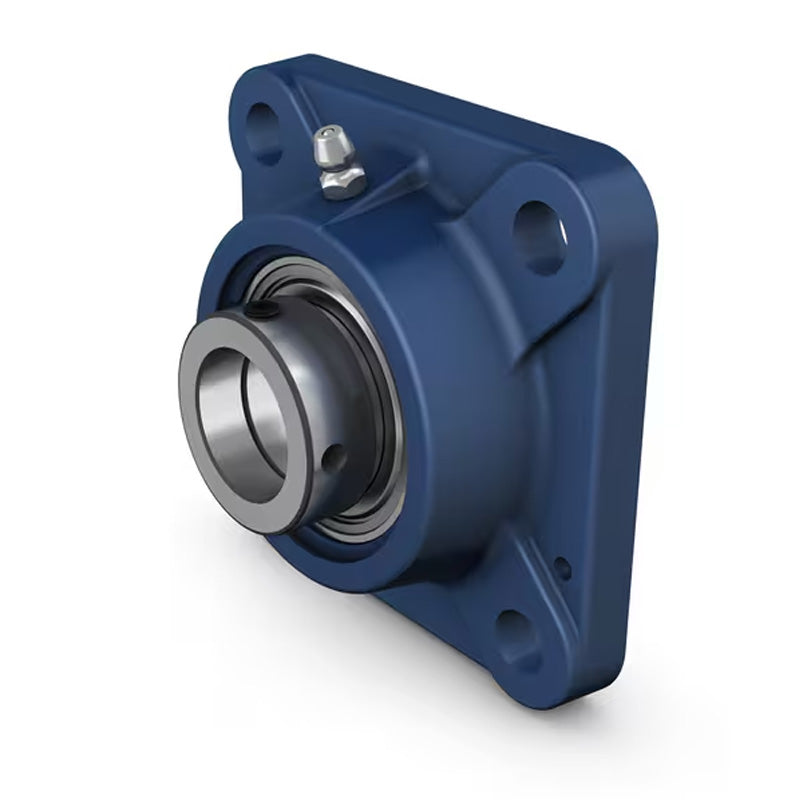

SKF FY1FM Square Cast Housing with Eccentric Collar 1 inch Insert
SKF FY1FM Square Cast Housing with Eccentric Collar 1 inch Insert
Regular price
€60,57
ex VAT
Regular price
Sale price
€60,57
ex VAT
In stock
Price Break
10+
€46,13
20+
€43,54
30+
€43,02
40+
€42,50
50+
€41,98
75+
€41,46
100+
€38,87
200+
€38,35
250+
€37,83
500+
€37,32
1000+
€36,28
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- FY
- Bolt Hole Centres:
- 70mm
Technical
Technical
| d | 1 inch |
|---|---|
| A1 | 30mm |
| A2 | 32mm |
| B1 | 31mm |
| J | 70mm |
| L | 95mm |
| G | 30mm |
| s1 | 23.5mm |
| T | 42.5mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit | 0.335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.78 kg |
| Housing | Insert |
