SKU: FY1.7/16FM-SKF

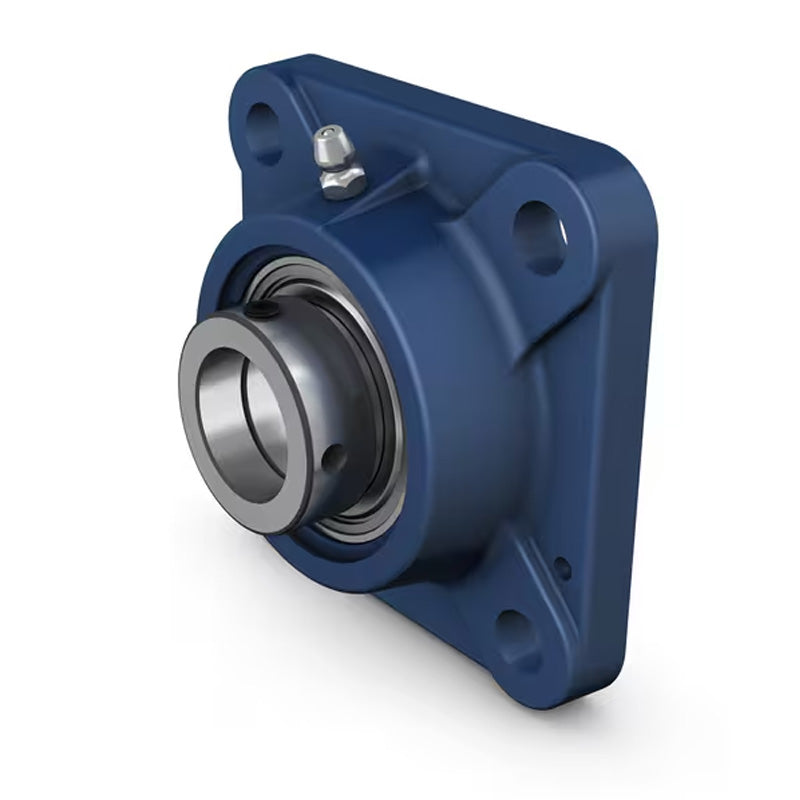

SKF FY1-7/16FM Square Cast Housing with Eccentric Collar 1-7/16 inch Insert
SKF FY1-7/16FM Square Cast Housing with Eccentric Collar 1-7/16 inch Insert
Regular price
€84,62
ex VAT
Regular price
Sale price
€84,62
ex VAT
In stock
Price Break
10+
€64,45
20+
€60,83
30+
€60,10
40+
€59,38
50+
€58,65
75+
€57,93
100+
€54,31
200+
€53,58
250+
€52,86
500+
€52,14
1000+
€50,69
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- FY
- Bolt Hole Centres:
- 92mm
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| A1 | 34.5mm |
| A2 | 13mm |
| B1 | 38.9mm |
| J | 92mm |
| L | 118mm |
| G | 32mm |
| s1 | 29.4mm |
| T | 50.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit | 0.655 kN |
| Limiting speed | 5300 rpm |
| Weight | 1.45 kg |
| Housing | Insert |
